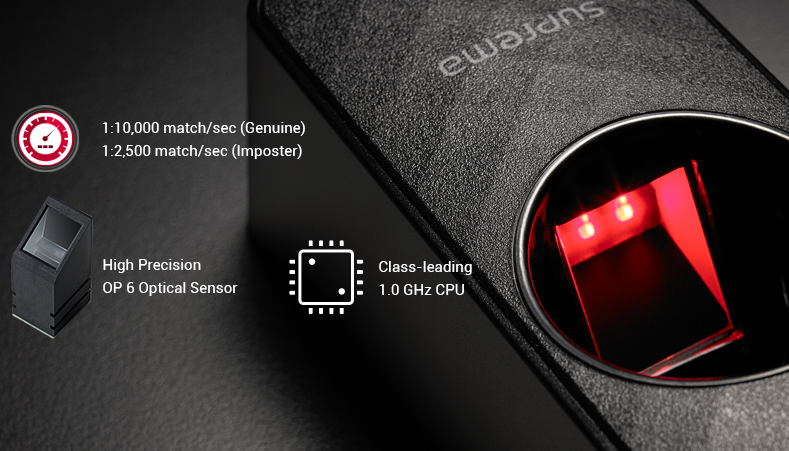

BioEntry P2 features a class-leading 1.0GHz CPU that enhances user experience by offering World's best matching speed, high-precision OP6 optical sensor and the latest Suprema fingerprint algorithm.
02

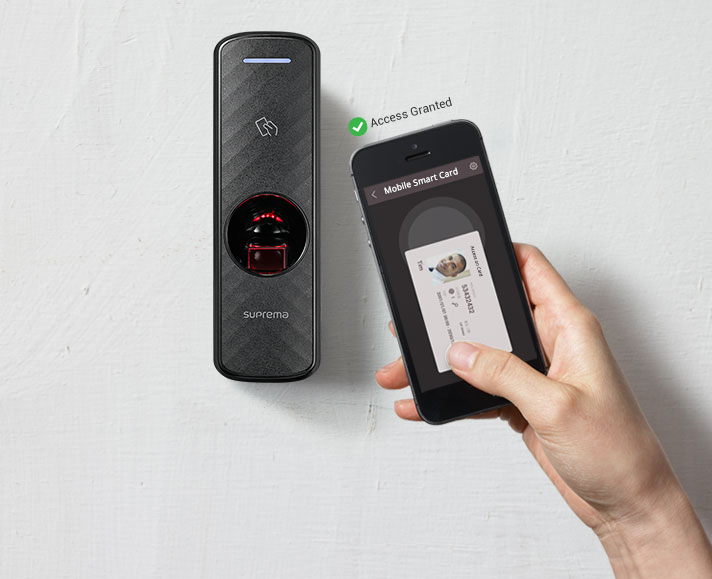

Communicates
with Smartphones
With BioStar 2 Mobile card, as a credential, your smartphone is a key to access.
NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption
03
Interoperability
by OSDP
By supporting latest OSDP V2 standards, BioEntry P2 is fully compatible with 3rd party OSDP compliance access controllers.

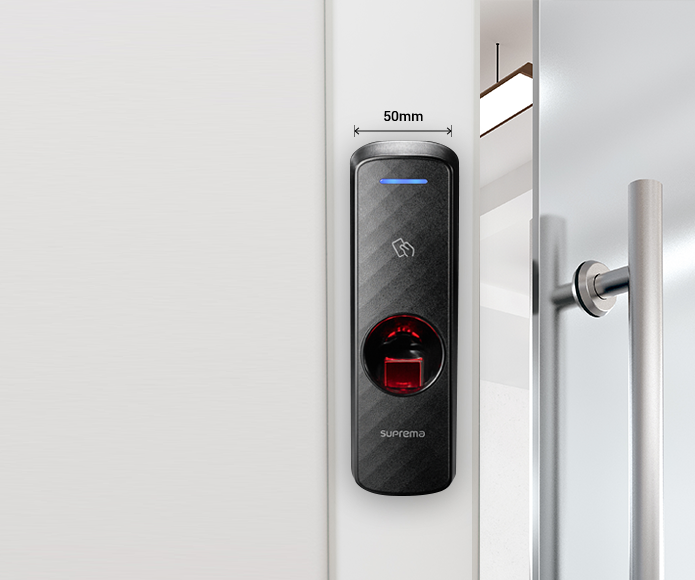

Mullion-type Design
With its 50mm width, BioEtnry P2 perfectly fits in in narrow spaces and door frames

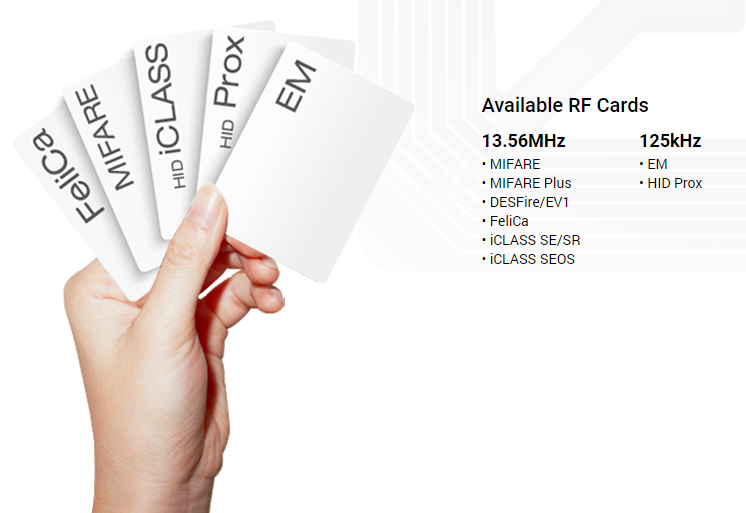

Featuring dual-frequency RFID card technology, BioEntry P2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards that HID multiCLASS readers support.
On top of fingerprint credential, BioEntry P2 supports most types of RFID card standards with a single device including MIFARE Classic® , HID iCLASS, DESFire®, FeliCa, HID Prox, EM and NFC
BioEntry P2 comes with not only a TCP/IP interface, but also more traditional interfaces (RS-485,Wiegand) to provide higher flexibility and multiple installation options for different environments. It also offers 2 internal inputs and 1 internal relay output to control peripheral devices. The I/O ports can also be expanded using the Secure I/O accessory.
Configuration
Specification
| Credential | Biometric | Fingerprint |
| RF Option | BEP2-OD: 125kHz EM & 13.56MHz MIFARE Classic® , MIFARE Plus®, DESFire®/EV1, FeliCa, NFC | |
| BEP2-OA: 125kHz EM, HID Prox & 13.56MHz MIFARE Classic® , MIFARE Plus®, DESFire®/EV1, FeliCa, iCLASS SE/SR, iCLASS SEOS, NFC | ||
| RF read range* | MIFARE Classic® /DESFire®/EM/HID Proxy/iCLASS: 50
mm, Felica: 30 mm
* RF read range will vary depending on the installation environment. |
|
| Capacity | Max. User (1:1) | 10,000 |
| Max. User (1:N) | 10,000 | |
| Max. Template (1:1) | 20,000 * Two templates per finger |
|
| Max. Template (1:N) | 20,000 * Two templates per finger |
|
| Max. Text Log | 1,000,000 | |
| Hardware | CPU | 1.0 GHz |
| Memory | 2GB Flash + 64MB RAM | |
| LED | Multi-color | |
| Sound | Multi-tone Buzzer | |
| Operating temperature | -20°C ~ 50°C | |
| Operating humidity | 0% ~ 80%, non-condensing | |
| Dimension (W x H x D) | 50 mm x 164 mm x 37.5 mm | |
| Weight | Device: 162 g | |
| Bracket: 39 g (Including washer and bolt) | ||
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE | |
| Interface | Ethernet | Supported (10/100 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (Selectable) | |
| Wiegand | 1ch Input or Output (Selectable) | |
| TTL input | 2ch Input | |
| Relay | 1 Relay | |
| Tamper | Supported |
