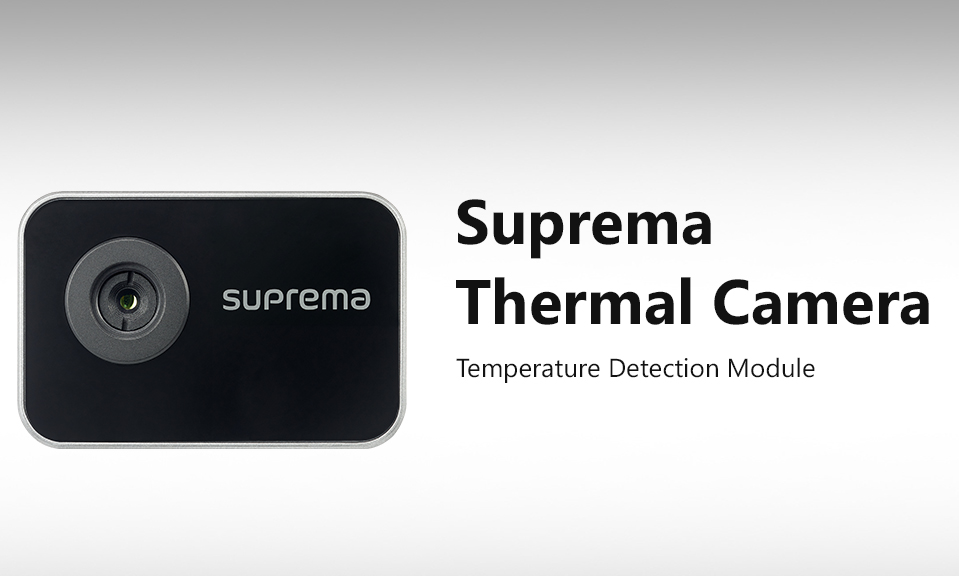

Suprema Thermal Camera can be used in combination with Suprema face recognition terminals to detect users with elevated skin temperature.
* Disclaimer: Suprema products are not used to diagnose any medical conditions. Suprema thermal cameras can identify individuals with skin temperature higher than a preset figure but should not be solely or primarily relied upon to diagnose or exclude a diagnosis of COVID-19, or any other disease.

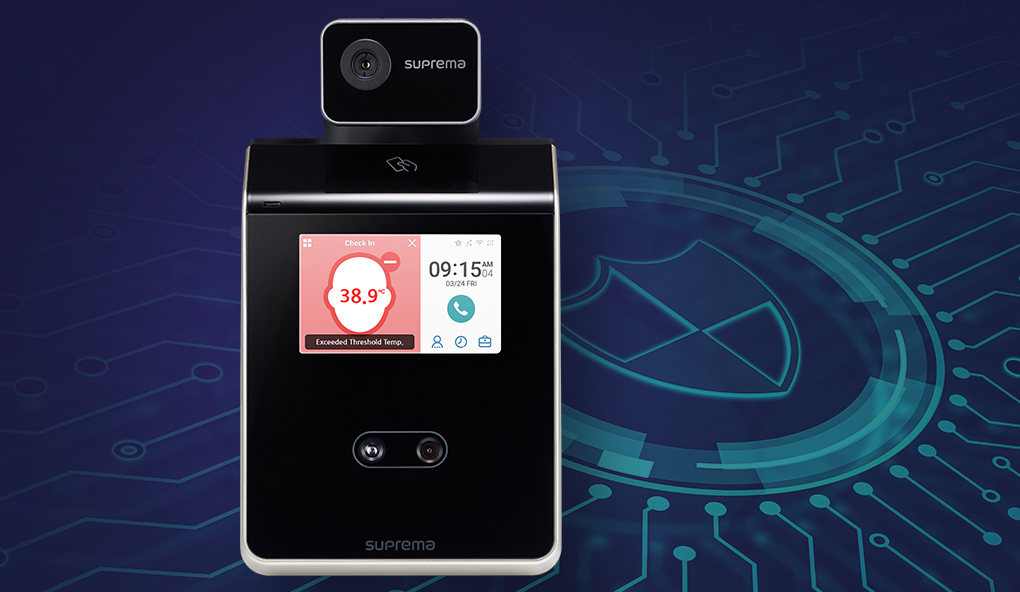

Suprema Thermal Camera combines with Suprema face recognition terminals to detect users with elevated skin temperature. The device displays temperature on a GUI and raises alerts when higher than threshold temperature is detected.

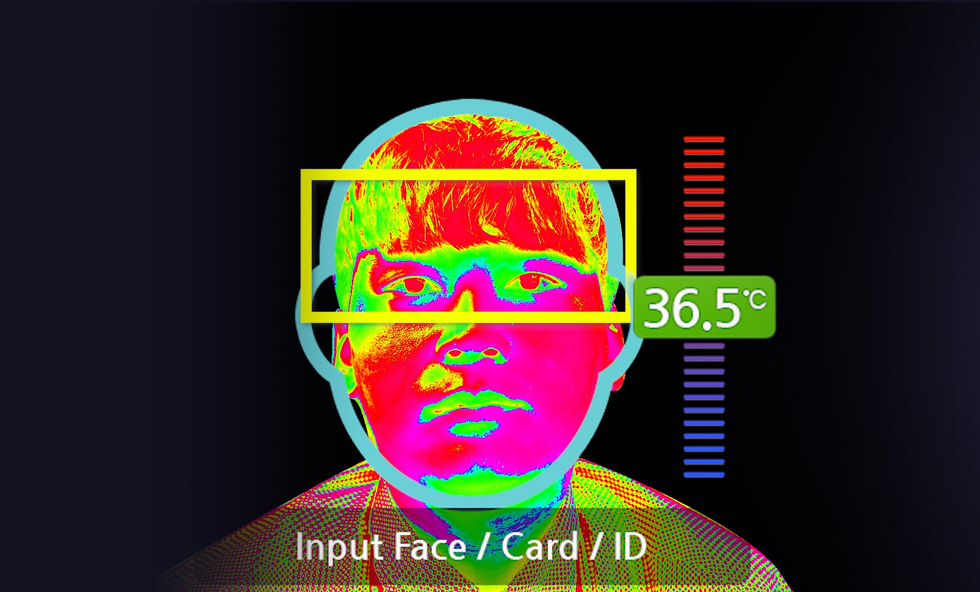

Suprema Thermal Camera increases the accuracy and consistency of the temperature measurement by using Suprema’s face recognition algorithm to pinpoint the upper area of the face.

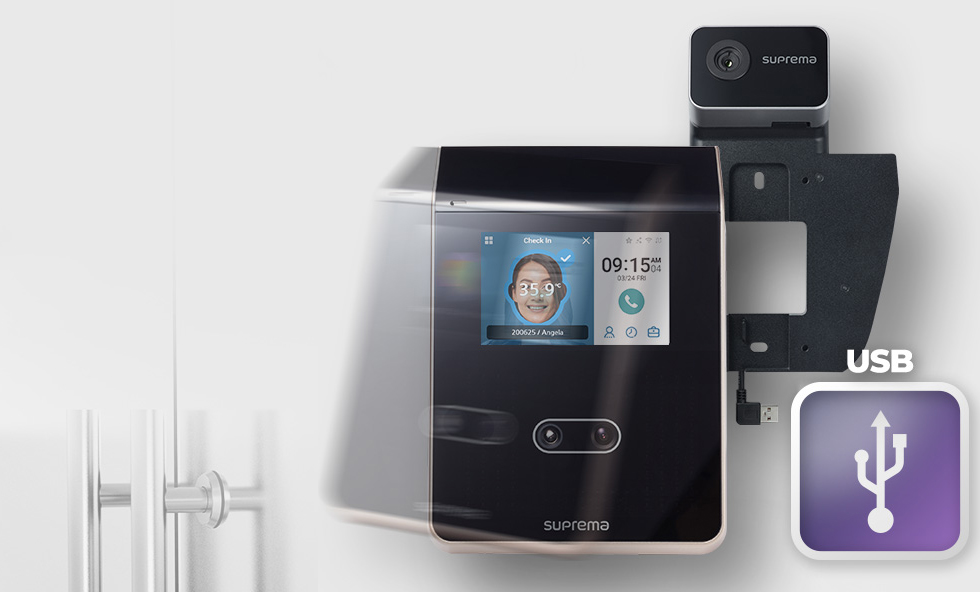

Suprema Thermal Camera easily connects with Suprema face recognition terminals via USB interface. It comes with a bracket for convenient deployment on new and retrofit installs.

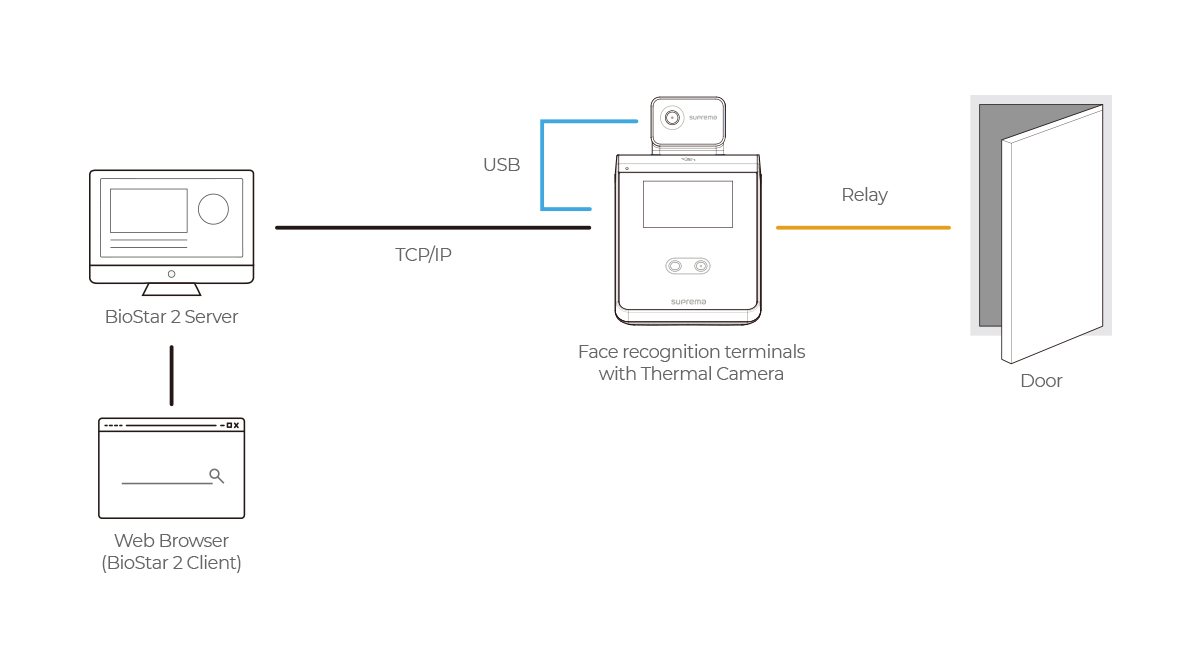

Configuration
Specification
| Part Code | TCM10-FS2 |
|---|---|
| Max. Resolution | 120 × 160 |
| NETD (Noise Equivalent Temperature Difference) |
≤ 50 mK (@25°C, F# = 1.0) |
| Field of View | 37.2° × 50°(H × V) |
| Temperature Range | 30°C to 45°C (86°F to 113°F) |
| Temperature Accuracy* | ≤±0.5°C (0.9°F)* / ±0.3°C (0.5°F)** |
| Temperature Distance | Adjustable, 40 cm–80 cm (15.7" to 31.5") |
| Interface | USB |
| Operating Temperature | 0°C to 50°C (32°F to 122 °F) |
| Dimensions (W x H x D) | Camera: 77 mm x 46 mm x 22.2 mm (3.03" x 1.81" x 0.87") Camera with Bracket: 139.84 mm x 163.8 mm x 22.8 mm (5.51" x 6.45" x 0.90") |
| Components | Thermal camera with bracket and USB cable, 6 screws (does not include FaceStation 2) |
| Firmware | v1.3.2 or v1.4.0 and above |
| Compatible BioStar 2 | V2.8.2.902 or v2.8.6 and above |
- *For ±0.5°C accuracy, use the device:
-
- In recommended ambient temperature (10°C to 35°C or 50°F to 95°F)
- 90 minutes after turning on for self-calibration
