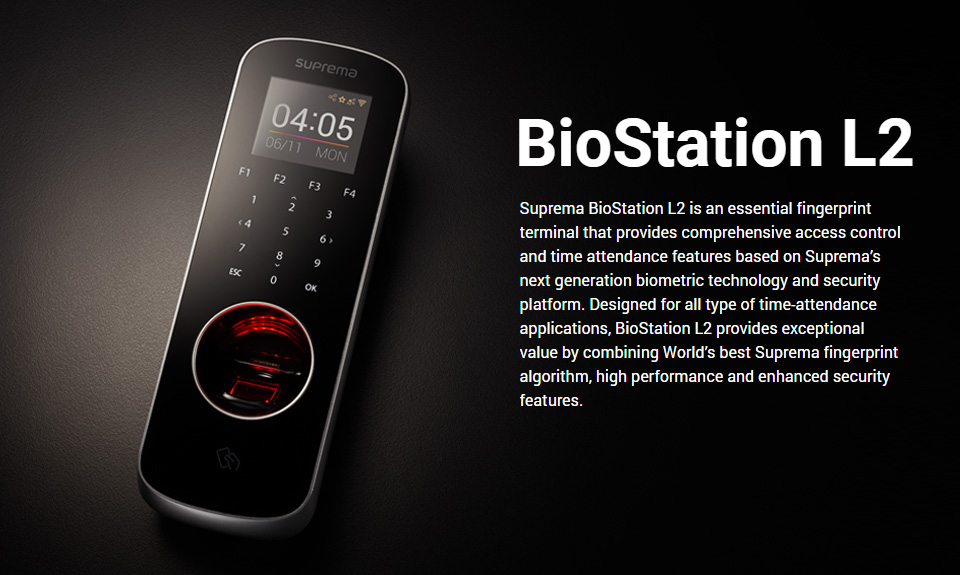

BioStation L2
01

BIOMETRICS,
SECURITY, PROGRESS


BioStation is Suprema’s top selling fingerprint terminal. Features full navigation keys with number keypad, allows BioStation to be more than just an access control device, but serve as a full featured biometric solution for time management duties.

02

Live Finger Detection


BioStation L2 features the Live Finger Detection 2.0 from Suprema. The previous live detection technology analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. Along with improvements to the existing algorithm, the new detection technology implements liveness decision engine using dual light source imaging. Using infra-red and white light, the engine blocks fake fingerprints made from numerous different materials.

03

Powerful Quad-Core Processor


BioStation L2 embeds the fastest clocked processor to be implemented in our terminals. Abundance of power is utilized for incredible matching speed that can accommodate enterprise size user database. The processor attributes to performance increase in number of aspects from data transfer speed, enhanced image processing, and quick fingerprint authentication.

04

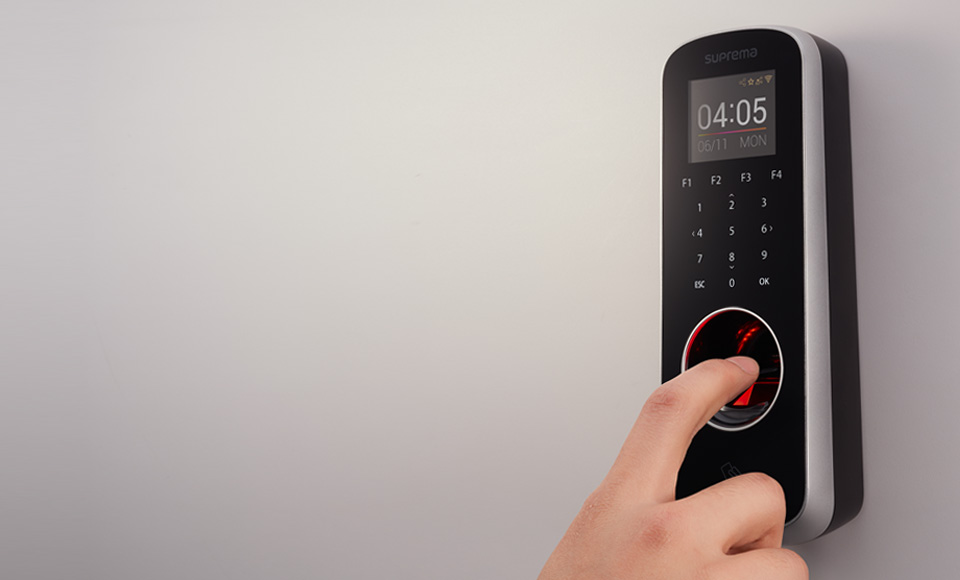

Comprehensive Time & Attendances Features


BioStation L2 converges the benefits of biometrics into time and attendance application. The use of true identity will lead to increased convenience and security to users and administrators. Full capacitive touch keypads along with dedicated programmable TA function keys will offer versatility and friendly user experience through full color LCD display.

05

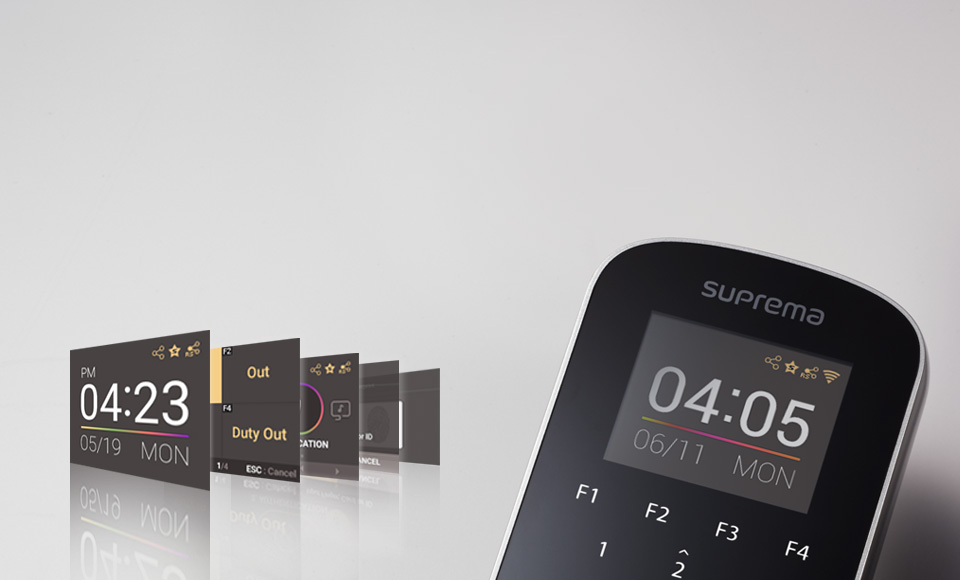

Intuitive User Interface


BioStation L2 houses 2-inch color LCD with rich colors and visibility that displays intuitive GUI that is easy to understand and self-explanatory. Administrators can easily add, remove, modify user data or access information from the device. Users also can easily access TA functions using the TA function keys and receive feedback right from the screen.

Specification

Main Biometric Fingerprint
Live Finger Detection Supported
RF Option 125KHz EM
13.56MHz MIFARE Classic® / DESFire® / DESFire® EV1/Felica/NFC
Multi-Controller Yes
Capacity Max. User (1:1) 500,000
Max. User (1:N) 100,000
Max. Template (1:1) 1,000,000
Max. Template (1:N) 200,000
Max. Text Log 5,000,000
Max. Image Log -
Interface WiFi -
TCP/IP Yes
RS-485 1ch Host or 1ch Slave
(Selectable)
RS-232 -
Wiegand 1ch In or Out
(Selectable)
Input 2 Inputs
Relay 1 Relay
USB -
SD Card Slot -
Hardware CPU 1.2GHz Quad Core
Memory 256MB RAM + 2GB Flash
LCD 2.0" Color LCD
LED Indicator -
Sound 16bit Hi-Fi
Operating Temp. -20° to 50°C
Tamper Yes
Power 12VDC
Dimensions 71x 201 x 44 (WxHxD mm)
Certificates CE, FCC, KC, RoHS, REACH, WEE
Compatibility BioStar 1.x -
BioStar 2 Yes
