FaceStation

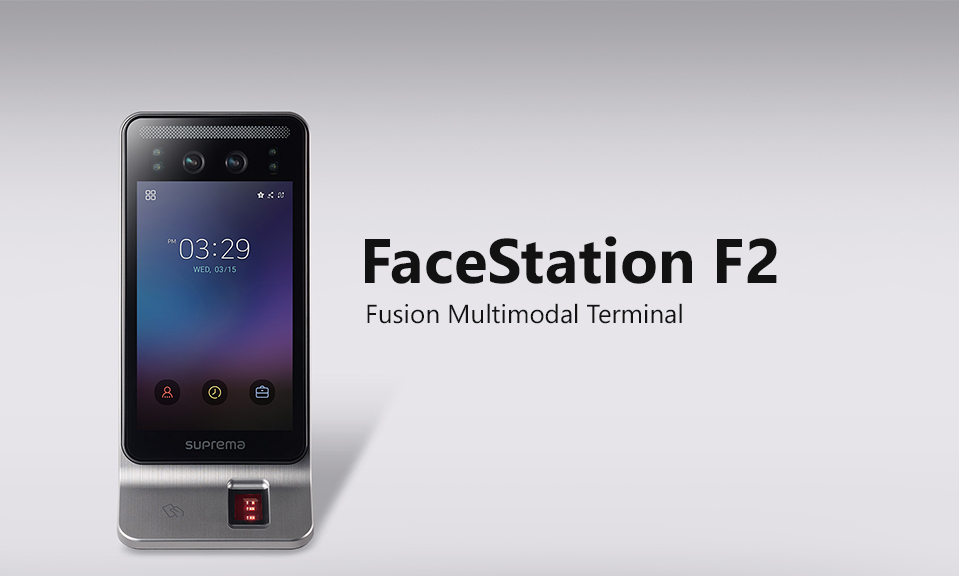

Suprema FaceStation F2 is a fusion multimodal terminal with unmatched face recognition performance. Experience the exceptional authentication accuracy and anti-spoofing performance achieved by Suprema’s unique Fusion technology.

FaceStation
Unrivaled Face Recognition Performance
FaceStation
Best-in-class Multimodal Device
FaceStation
Contactless Solution for the New Normal
FaceStation
Robust Device Security and Data Encryption
01

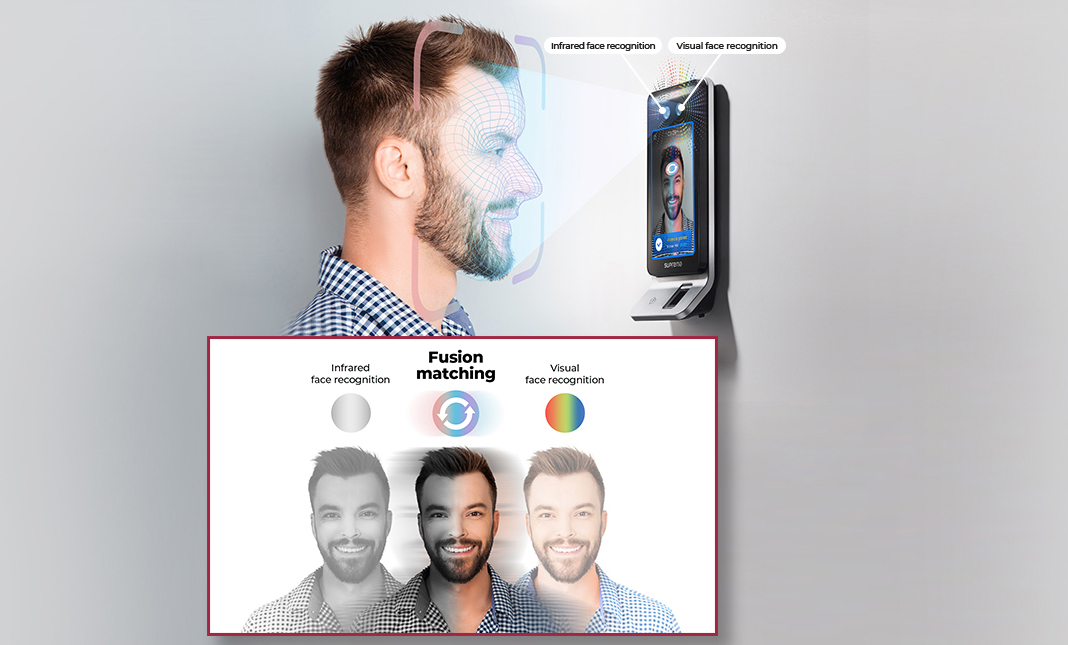

Unrivaled Face Recognition Performance by Fusion Matching


Suprema’s Fusion Matching technology combines the IR and visual face recognition with unique deep learning algorithm to achieve exceptional authentication accuracy and industry’s best anti-spoofing performance.
* False Acceptance Rate (FAR) of 1 in 10 billion

02

Best-in-Class Multimodal with Various Credentials


Offering credential options of face, fingerprint, cards and mobile access, FaceStation F2 is the best-in-class multimodal device in the industry. It also supports dual frequency access cards, NFC and BLE-based Mobile Access Cards as well as Access-on-Card that allows authentication via biometric data stored in cards.

03

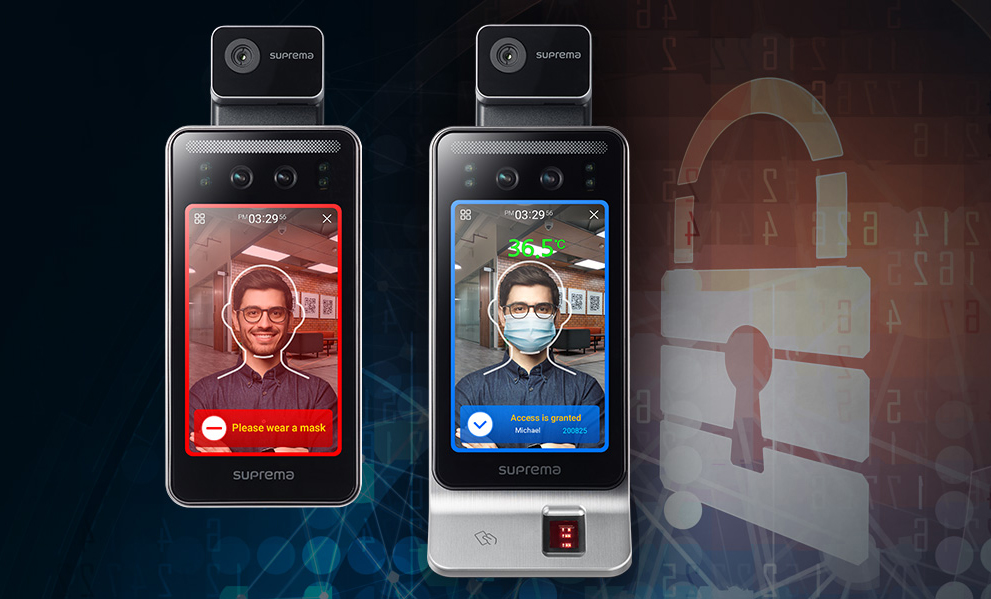

Contactless solution for new standards of safety and hygiene


FaceStation F2 meets the needs of the post-pandemic world with features like remote user enrollment, detection of users without masks and face recognition of users wearing masks. When combined with Thermal Camera, FaceStation F2 can identify people with elevated skin temperature

04

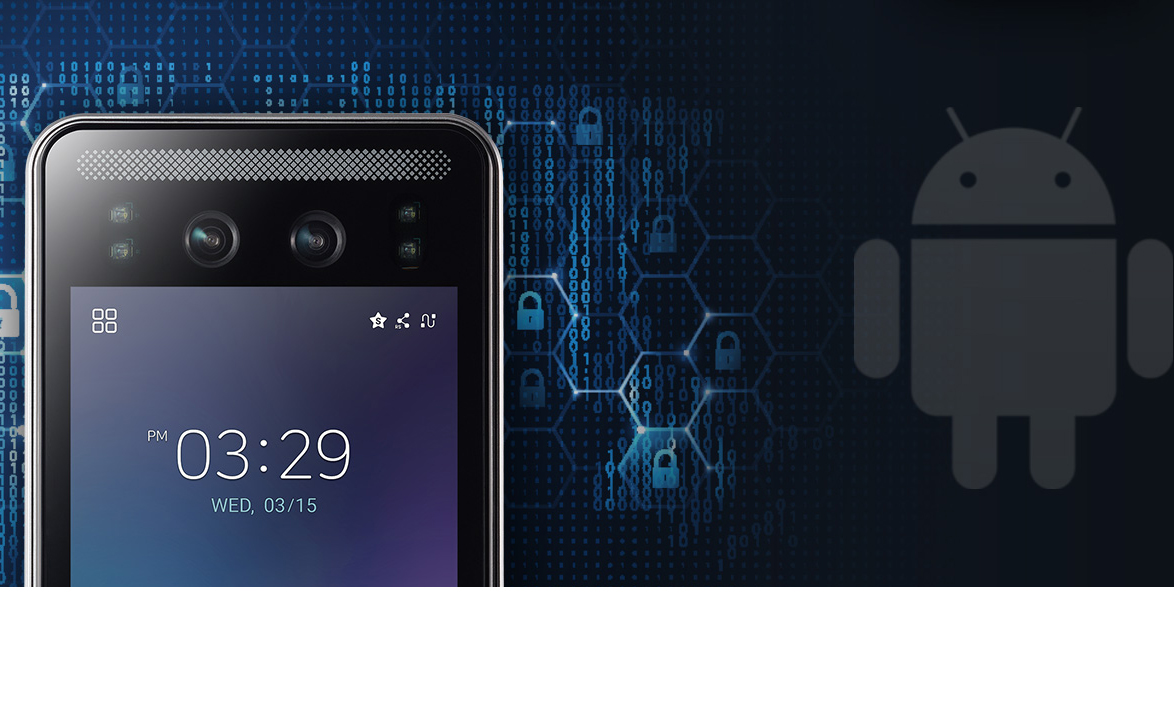

Robust Device Security and Data Encryption


.

With the highest level of device security, FaceStation F2 not only encrypts all biometric credentials and personal information but also protects the data with secure boot process. FaceStation F2 is built on Android 8.1 and all its security enhancements.

05

Enterprise-level Memory Capacity


FaceStation F2’s massive memory capacity can easily handle the large number of users in enterprise environment. FaceStation F2 can accommodate up to 100,000 users*, 50,000 face image logs and 5,000,000 text logs.

USERS

100,000

IMAGE LOGS

500,000

TEXT LOGS

5,000,000

* 100,000 users with fingerprint authentication and 50,000 users with face authentication
06

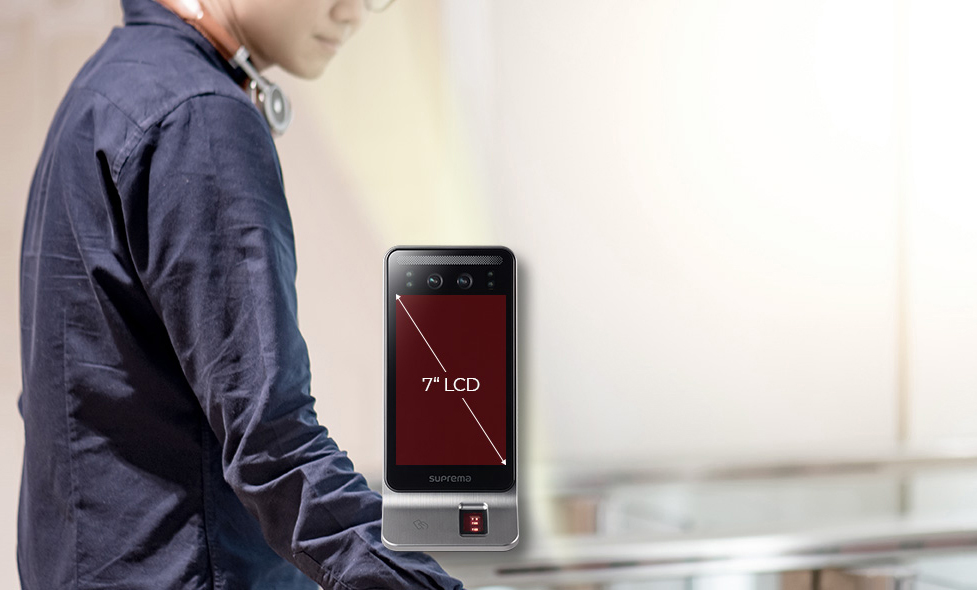

Improved User Convenience


FaceStation F2 provides improved user convenience with 7“ LCD screen and walkthrough face recognition. Users no longer have to stand still and fit faces to a predefined area. Recognition distance range has also been increased to 50cm ~ 130cm.

07

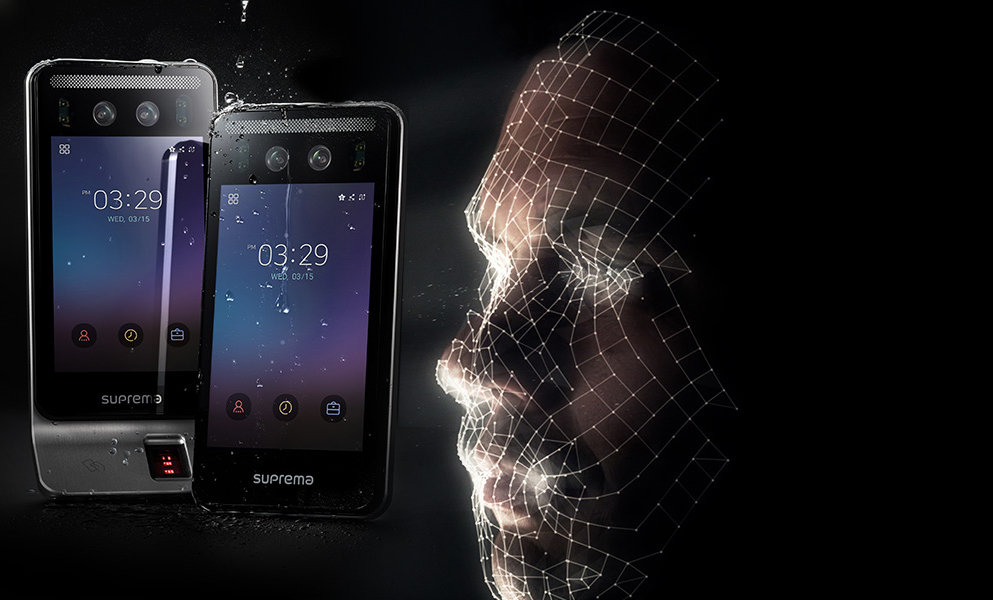

Suitable for Various Environment


Thanks to its IR recognition technology, FaceStation F2 can authenticate faces under dim lighting, allowing uninterrupted face recognition in all indoor lighting conditions. With IP65 rating, FaceStation F2 is dust-proof, waterproof and easy to maintain.

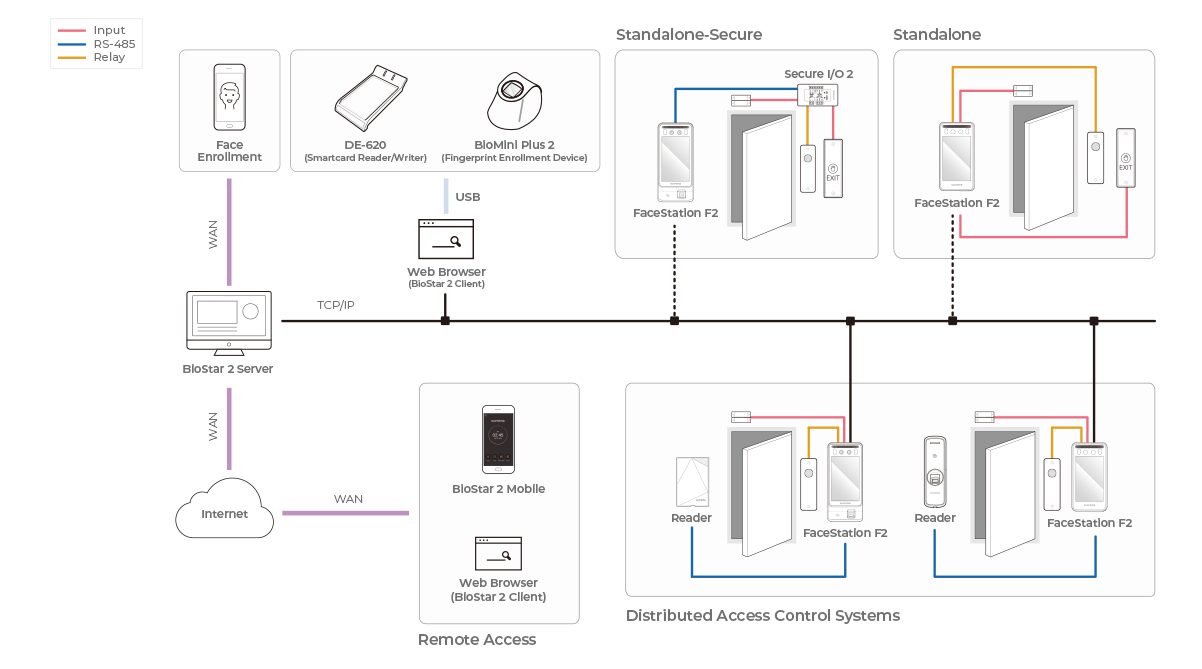

Configuration

Specification

Category Feature FSF2-DB FSF2-AB FSF2-ODB
Credential Biometric Face Face, Fingerprint
RF Option 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa
RF read range* EM/MIFARE/DESFire : 50 mm (2"), FeliCa: 30 mm (1.2")
* RF read range will vary depending on the installation environment
Mobile NFC, BLE
General CPU 1.8 GHz Dual Core + 1.4 GHz Quad Core
Memory 16GB Flash + 2GB RAM
LCD type 7” IPS color LCD
LCD resolution 800 x 1280 pixels
Sound 16bit
Operating temperature -20°C ~ 50°C (-68°F ~ 122°F)
Operating humidity 0% ~ 80%, non-condensing
Dimension (W x H x D) 119.8mm x 223mm x 23.5mm
(4.7"" x 8.8"" x 0.9"")
119.8mm x 268.4mm x 49.7mm
(4.7" x 10.6" x 1.9")
Weight Device 585g 670g
Bracket
(Including washer and bolt)
181g 205g
IP rating IP65
Certificates CE, FCC, KC, RoHS, REACH, WEEE
Face Recognition Distance 0.5m ~ 1.3m (19.7" ~ 51.2")
Recognition Height 140cm ~ 190cm (55.1" ~ 74.8")
Matching speed Less than 0.5 sec
Anti-Spoofing Supported
Fingerprint Image dimension N/A 300 x 400 pixels
Resolution 500 dpi
Template SUPREMA / ISO19794-2, ANSI-378
Extractor / Matcher MINEX certified and compliant
Sensor Certificates FBI PIV and FBI Mobile ID FAP20
Live Fingerprint Detection Supported (SW-based)
Capacity Max. User (1:1)
* Based on one face/fingerprint enrollment per user
100,000
Max. User (1:N)
* Based on one face/fingerprint enrollment per user
Face: 50,000 Face: 50,000
Fingerprint: 100,000
Max. Text Log 5,000,000
Max. Image Log 50,000
Interface Ethernet 10/100 Mbps, auto MDI/MDIX
RS-485 1ch Host or Slave (Selectable)
Wiegand 1ch Input, 1ch Output
TTL input 2ch Inputs
Relay 1 Relay
USB USB 2.0 (Host)
Tamper Supported
Power Voltage: DC 12V ~ DC 24V
Current: Max. 2.5 A
*Use a 24V/2.5A adapter. Must follow the product manual when using a 12V adapter.
