FBI Approved
Simple & Easy Operation
Ergonomic Design
Environment Ready
01

FBI APPROVED

FBI IAFIS Appendix F Certification


The certification provides assurance to users that certified products meet or exceed FBI interoperability standards and will work with the Integrated Automated Fingerprint Information System (IAFIS). It ensures that the images used are high quality and support all phases of identification for fingerprint experts and the IAFIS. Appendix F has stringent image quality conditions, focusing on the human fingerprint comparison and facilitating large scale machine many-to-many matching operation.

02

Latest in Technology

Advanced Rolled Image Construction Technology


RealScan-D features Advanced Rolled Image Construction technology using Suprema’s unique slip detection algorithm for constructing rolled fingerprint images. With ARIC technology, RealScan-D performs over 20 fps frame rate in roll capturing which ensures highest image quality and lower error rate in capturing sequences.

03

Simple operations

Intuitive User Interface

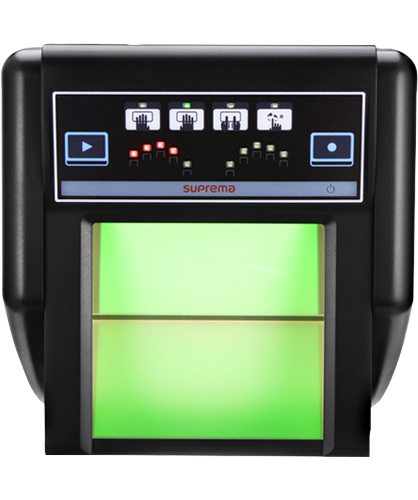

RealScan-G10’s control panel consists of two operation buttons and LED indicators. The intuitive graphic icons indicates fingerprint types that the device is scanning, and LED lights at fingertips indicate when fingers needs to be placed. The operating buttons on both sides helps users to operate scanning directly from the scanner and built-in speaker enables fully programmable voice instructions.

04

Ergonomic Design

Designed For Scanning

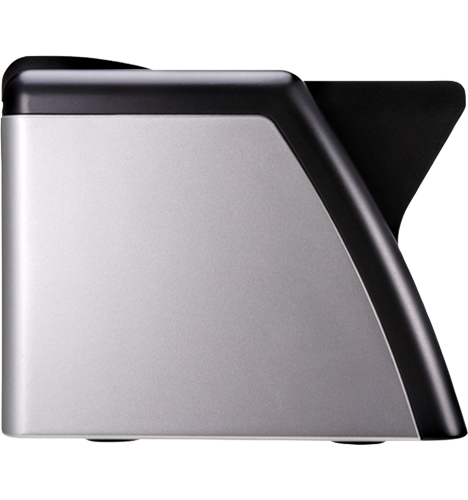

RealScan-G10 has been ergonomically designed to allow obstruction-free fingerprint capturing of all types. Indented front overhang is ideal for seamless hand movements during rolled print capture or two thumbs capture.

05

Screen to capture all

Extra Wide Platen For Easier Capturing

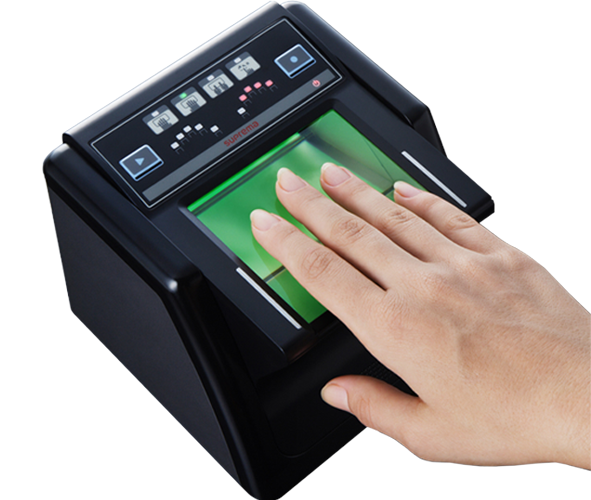

Wide & solid, the RealScan-G10’s 3.5 inch platen is the largest size in its class and ensures easier capturing when placing hands. The solid & scratch-free surfaces makes it durable for many kinds of stains & damages.

04

Environment ready

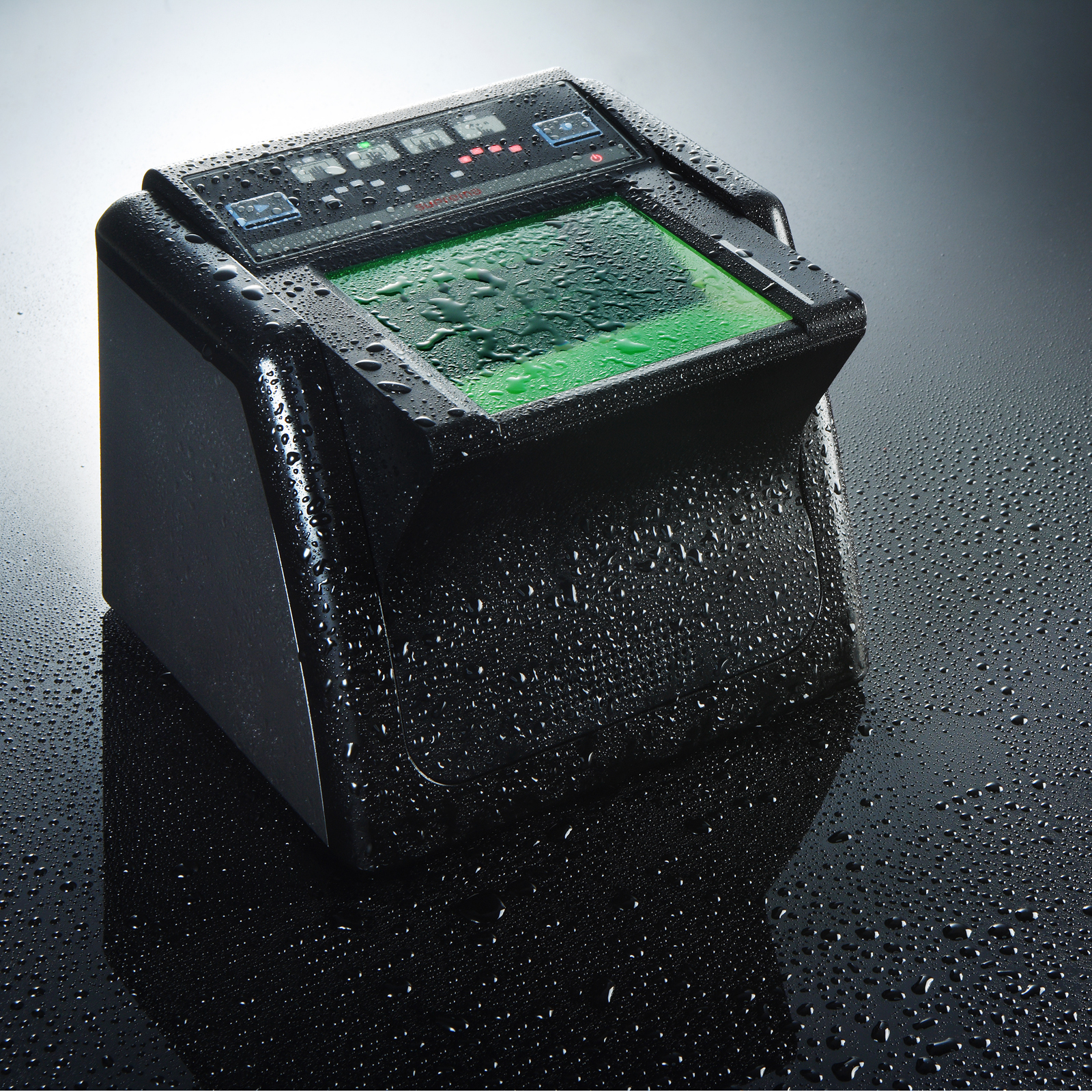

Rugged IP54 Dust & Waterproof Structure

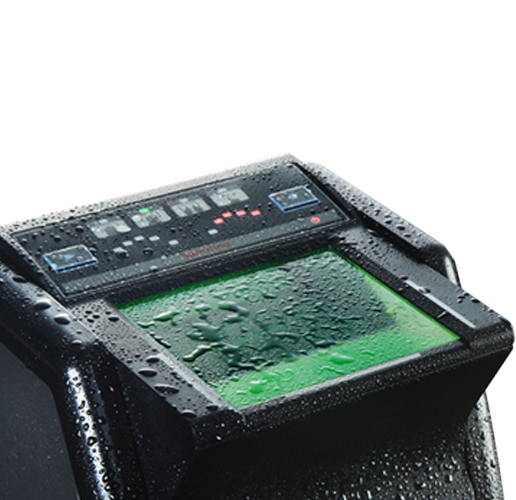

RealScan-G10’s body structure has been comprehensively sealed against invasive moisture, dust and liquid. Featuring superb IP54 rated protection through meticulous sealing, combined with extra protective engineering, ensures faultless operation even under harsh conditions.

Specification

Fingerprint Types Single flats, Single rolls, Four finger slaps, Two thumbs
Resolution 500 dpi, 256 gray
Platen Size (W x L) 3.5" x 3.15" (89 x 80 mm)
Image Size (W x L) Four Finger Slap: 3.2" x 3.0" (81 x 76 mm) Finger Roll: 1.6" x 1.5" (41 x 38 mm)
Image Quality Standards FBI IAFIS Appendix F
Ingress Protection IP54
Operating Temperature 0-50'C
Operating Humidity From 10 to 90%, non-condensing
Dimension (W x L x H) 5.9" x 5.9" x 5.0" (152 x 152 x 127 mm)
Weight 3.96 lbs / 1.8 kg
Interface USB 2.0 (data & power)
Operating Systems Window 8, 7, Vista, XP, Linux(Ubuntu, Fedor)
Certificate FBI, FIPS 201, WHQL, CE, FCC, UL, KCC
