Reals Scan - F
01

FBI IAFIS Appendix

F Certification


The certification provides assurance to users that certified products meet or exceed FBI interoperability standards and will work with the Integrated Automated Fingerprint Information System (IAFIS). It ensures that the images used are high quality and support all phases of identification for fingerprint experts and the IAFIS. Appendix F has stringent image quality conditions, focusing on the human fingerprint comparison and facilitating large scale machine many-to-many matching operation.

02

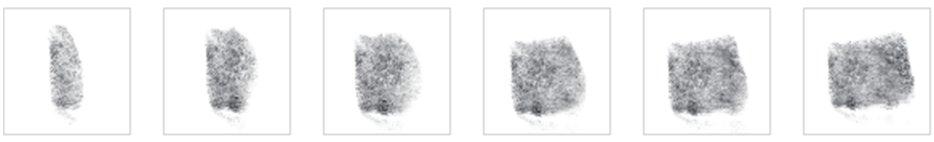

Advanced Rolled Image

Construction Technology


RealScan-F features Advanced Rolled Image Construction technology using Suprema's unique slip detection algorithm for constructing rolled fingerprint images. With ARIC technology, RealScan-F performs over 15 fps frame rate in roll capturing which ensures highest image quality and low error rate.

03

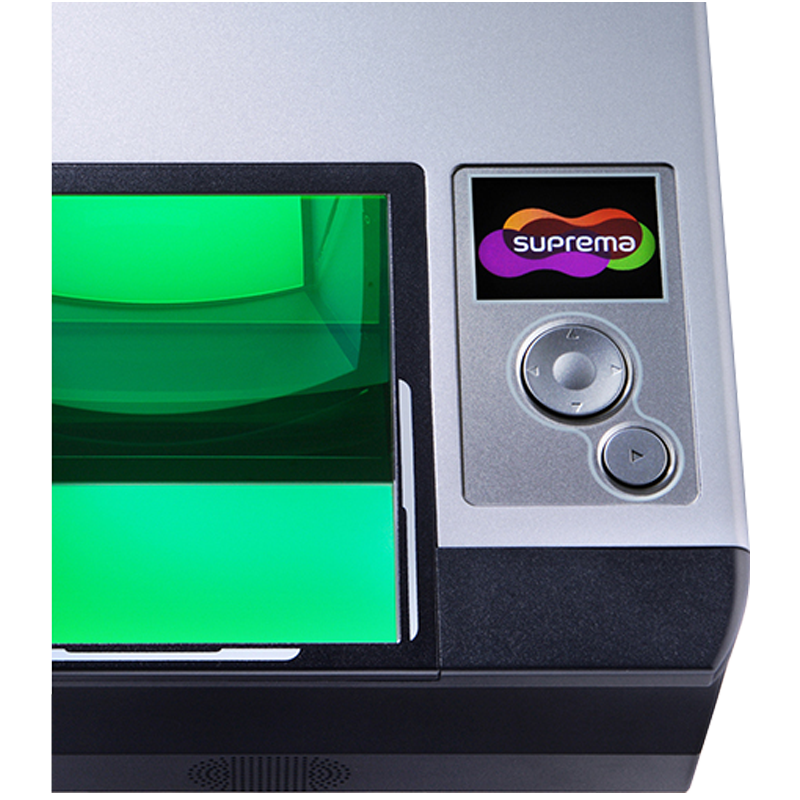

Intuitive Control Panel

and Color LCD Display


Perfect for mass-level users, RealScan-F’s simple user interface makes live-scanning easier. It guides users’ finger scanning sequence with the prism illumination and sound indication. A handy operating button is located above the platen, which is fully programmable upon users’ requirements.

04

5.2" Extra Wide Platen

for Easier Capturing


Wide & solid, the RealScan-F's 5.2 inch platen is the largest size in its class and ensures easier capturing of the head. The solid & scratch-free surfaces makes it durable for many kinds of stains & damages.

Specification

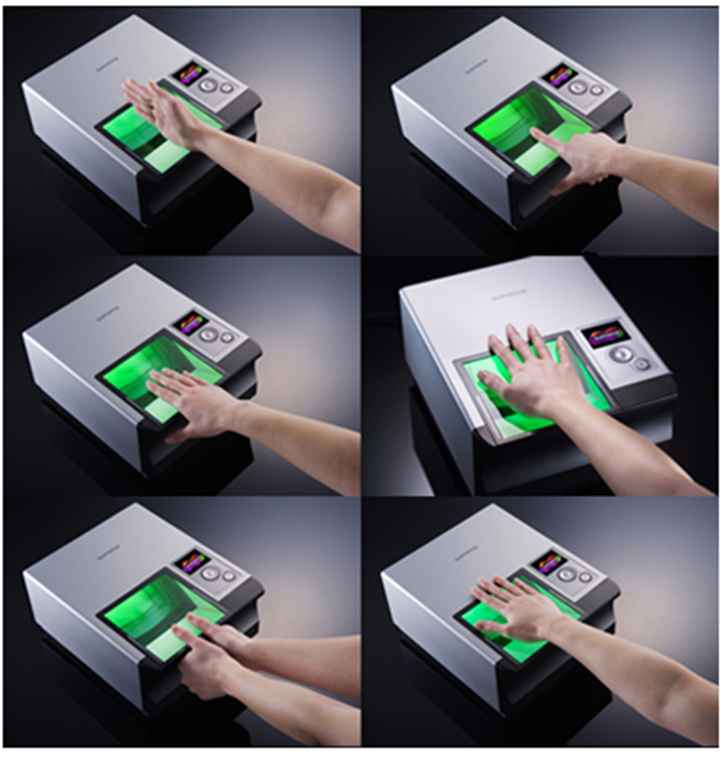

Main Fingerprint Type Single Roll
Single Flat
Dual Flat
Four-Finger Slap
Palm & Writer’s edge
Resolution 500 dpi, 256 gray
Platen Size 132 x 132 mm (5.2” x 5.2”) (W x L)
Image Size Roll 41 x 38 mm (1.6” x 1.5”) (W x L)
Palm 129 x 129 mm (5.1” x 5.1”) (W x L)
Image Quality Standards FBI IQS Appendix F
Interface USB 2.0 High-speed (Data & Power)
Hardware IP Rating Splash Proof
Display 2.4" Color LCD
Operating Temperature 0°C ~ 50°C
Operating Humidity 10 ~ 90%, non-condensing
Dimension 55 x 106.5 x 44.5 mm (W x L x H)
Weight 6.0kgs
Certification WHQL, CE, FCC, UL
Compatibility Operating System Windows 8, 7, Vista, XP
Linux

Applications

  • Civil Identification
    • Driver’s license, voter registration
    • Social welfare, banking
    • National Population register (NPR)
  • Criminal Identification
    • IAFIS / EURODAC
    • Law enforcement, national police agencies
    • Crime and Criminal Tracking Network & Systems (CCTNS)
  • Background Check
    • Employment background checks
    • Pre-employment screening
  • Airport & Border Check
    • IDENT (USA, Japan)
    • Enrollment & matching for foreign travelers
  • e-Passport & Visa
    • e-Passport issuance
    • e-Visa program
  • National ID Cards
    • Smart ID cards
    • Enrollment 1:1, 1:N matching
