- 12 output relays per unit
- Controls max. 192 floors per elevator
- Preset alert for alarms in APB zones
- Elevator groups can be added to a certain fire alarm zone
- Terminating resistance for RS-485 connections

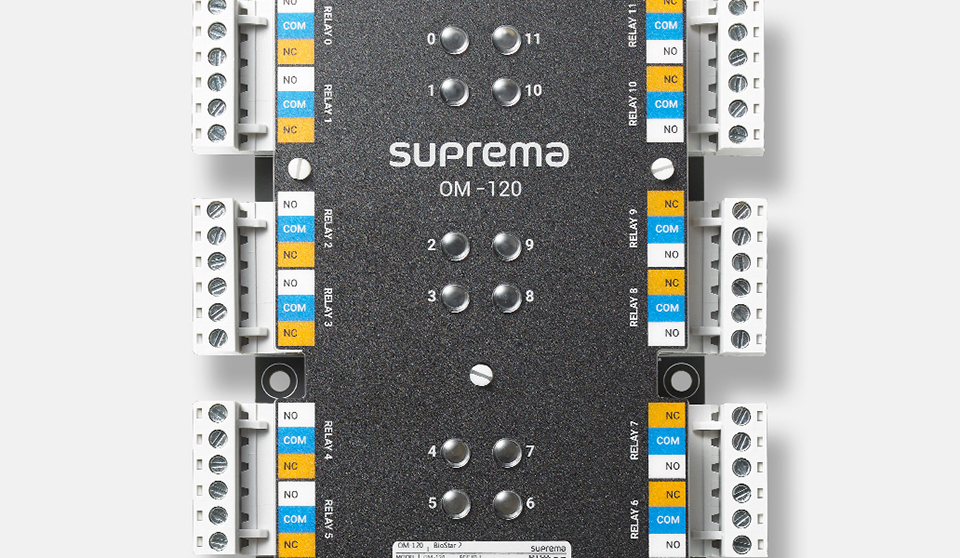

OM-120 can be configured to control doors with BioStar 2 system. Up to 192 floors can be controlled per elevator and BioStar 2 system can control max. 1,000 elevators.
Along with elevator control, OM-120 produces various output signals including preset relay signals to entrances and different zones. For fire alarm zone, input/output can easily be configured using aux and relay ports.
Specification
| Model Name | OM-120 | |
|---|---|---|
| HW | CPU | 72MHz |
| Memory | Flash 128KB, SRAM 20KB |
|
| LCD Type | Not supported |
|
| LED | Multi-color |
|
| Sound | Not supported |
|
| Operating Temperature | -20°C ~ 60°C | |
| Storage Temperature | -40°C ~ 70°C | |
| Operating Humidity | 0% ~ 95%, non-condensing | |
| Storage Humidity | 0% ~ 95%, non-condensing | |
| Weight | 300 g | |
| Dimension (WxHxD, mm) | 90 x 190 x 21 | |
| Tamper | Not supported | |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE | |
| Interface | Wi-Fi | Not supported |
| Ethernet | Not supported | |
| RS-485 | 1 ch | |
| Wiegand | Not supported | |
| TTL Input | Not supported | |
| Relay | 12 Relays | |
| USB | Not supported | |
| SD Card | Not supported | |
| PoE | Not supported | |
| Intercom | Not supported | |
| AUX Input | 2 ch Dry Contact Input | |
| Electrical | Electrical | DC 12 V |
