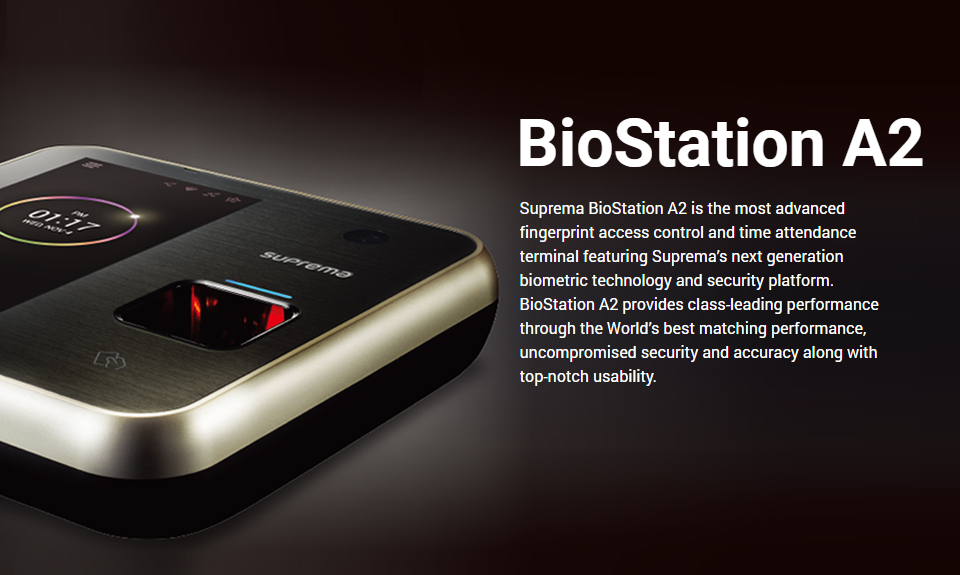

BioStation A2
01

THE BEST
OF EVERYTHING


BioStation is Suprema’s top selling fingerprint terminal. Features full navigation keys with number keypad, allows BioStation to be more than just an access control device, but serve as a full featured biometric solution for time management duties.

02

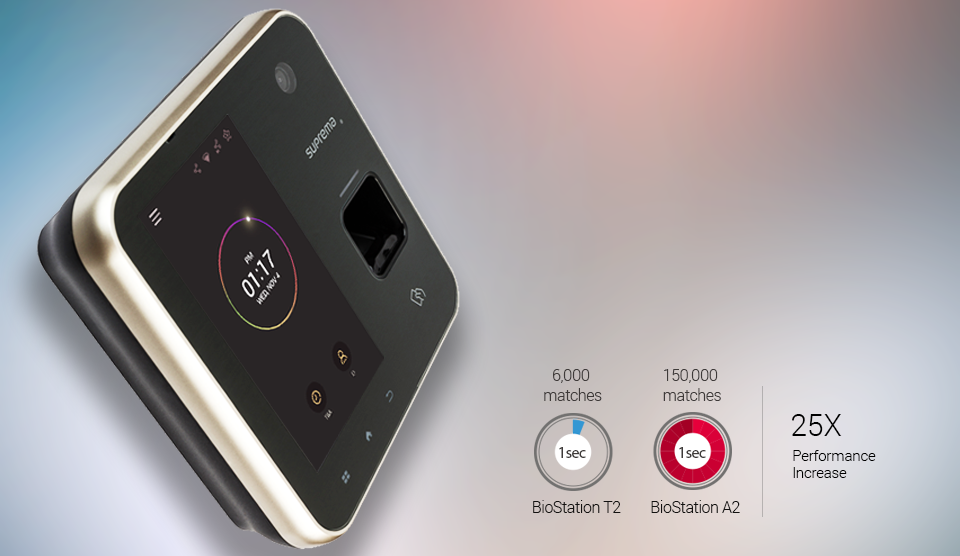

World’s Best Performance


BioStation A2 features a class-leading powerful Quad Core CPU that enhances user experience by offering World’s best matching performance, smooth graphics, and quick response for users. BioStation A2 carries massive 8GB memory to store up to 500,000 users, 5,000,000 text logs as well as 50,000 image logs to accommodate enterprise class sites with room to spare.

03

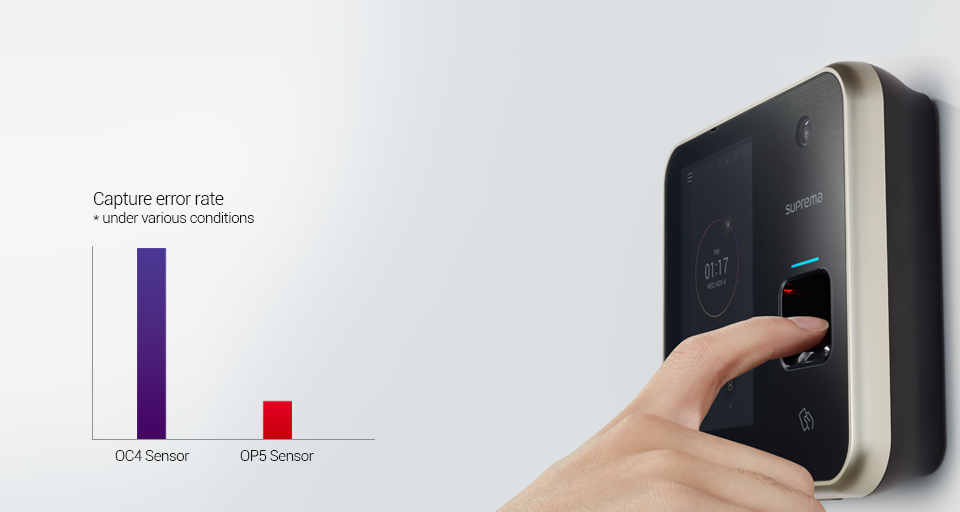

World's Best Accuracy


BioStation A2 combines the benefit of new OP5 sensor and improved Suprema fingerprint algorithm to provide world best accuracy. Enlarged sensing area with introduction of new fingerprint capture and processing techniques such as adaptive gain control, distortion compensation and noise reduction allows BioStation A2 to reduce capture error rate in various environments.

04

Enhanced Security


BioStation A2 features Suprema’s all new Live Finger Detection technology. Using combination of proprietary optics and algorithm technology, BioStation A2 clearly distinguishes fake fingers made from number of different materials to prevent any fraudulent activity.

05

Improved Usability


BioStation A2 is designed to secure maximum usability for users. 5” IPS LCD touch screen provides wide viewing angles and easy operation that is further extended by special reinforced glass screen that ensures maximum screen visibility. The UI is inspired from Android based material design that is self-explanatory and easy to understand for users.

06

Premium Design

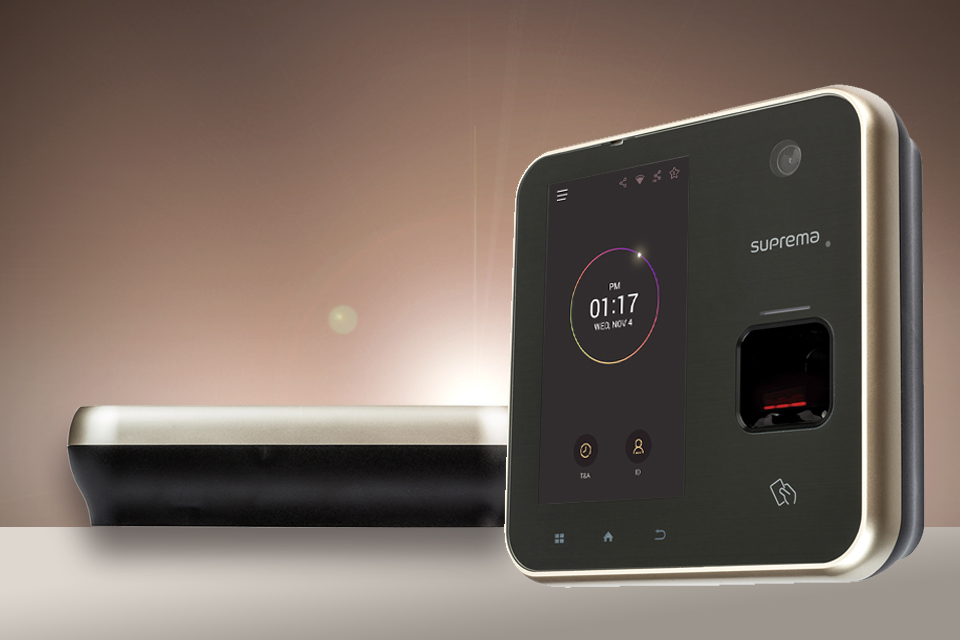

BioStation A2 ensures its premium status with soft hairline pattern on the front face for sleek and solid look. It is wrapped around with rose-gold colored rim finish that serves as a centerpiece while blending in beautifully with any environment.

07

Extended Versatility


BioStation A2 shows off extended versatility with its built-in 2MP wide-angle camera that captures high resolution face captures through face detection for image logs. BioStation A2 also supports videophone, PoE, and built-in WiFi along with extensive RF card options to ensure versatility.

Specification

Main Biometric Fingerprint
Live Finger Detection Supported
RF Option 125KHz EM
125KHz HID Prox
13.56MHz MIFARE Classic® / DESFire® / DESFire® EV1/Felica/NFC
13.56MHz iClass SE
Multi-Controller Yes
Capacity Max. User (1:1) 500,000
Max. User (1:N) 100,000
Max. Template (1:1) 1,000,000
Max. Template (1:N) 200,000
Max. Text Log 5,000,000
Max. Image Log 50,000
Interface WiFi 802.11 b/g
TCP/IP Yes
RS-485 1ch Host or 1ch Slave
(Selectable)
RS-232 Yes
Wiegand 1ch In
1ch Out
Input 2 Inputs
Relay 1 Relay
USB Host
SD Card Slot Up to 32GB
Hardware CPU 1.0GHz Quad Core
Memory 1GB RAM + 8GB Flash
LCD 5.0" IPS LCD Touch
LED Indicator Multi-Color
Sound 24bit/Voice DSP (Echo Cancellation)
Operating Temp. -20° to 50°C
Tamper Yes
Power 12VDC
PoE Yes
Dimensions 155 x 155 x 40 (WxHxD mm)
Certificates CE, FCC, KC, RoHS, REACH, WEE
Compatibility BioStar 1.x -
BioStar 2 Yes
