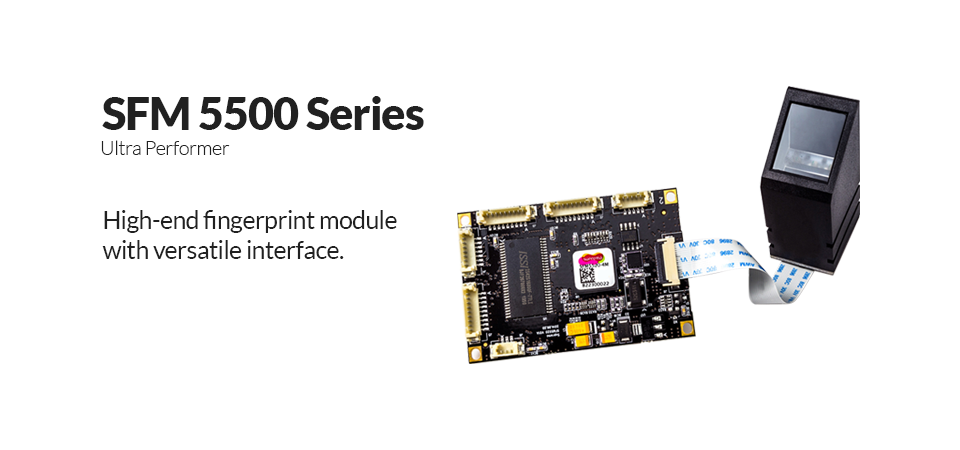

Suprema Algorithm
Ultra-Fast DSP
User Friendly Feature
Versatile Interface
01

WORLD'S NO. 1.

SUPREMA ALGORITHM

02

POWER TO SPARE

ULTRA-FAST DSP


SFM5500 Series features Suprema Algorithm, world’s most reliable fingerprint algorithm that has won Fingerprint Verification Competition (FVC) in both 2004 and 2006. It offers security and reliability like no other.

Powerful DSP rated at 533Mhz provides ample processing power to the module, giving it improved enrollment and identification speed.

03

MAXIMUM USABILITY

USER FRIENDLY FEATURES

04

EXTENDED VERSATILITY

ULTRA-FAST DSP


SFM5500 Series features quick-boot for Fast power on time, Serial interface with simple protocol, and user configurable I/O and LED control to maximize potential of the module to its fullest.

SFM5500 Series offers number of different interfaces for integration options. The interfaces ranges Wiegand input/output, RS232, RS422, and RS485. The module also provides auxiliary communication interface for additional devices.

AVAILABLE ACCESSORIES

Sensor

Braket

Housing

Sensor

Braket

Housing

Sensor

Braket

Housing

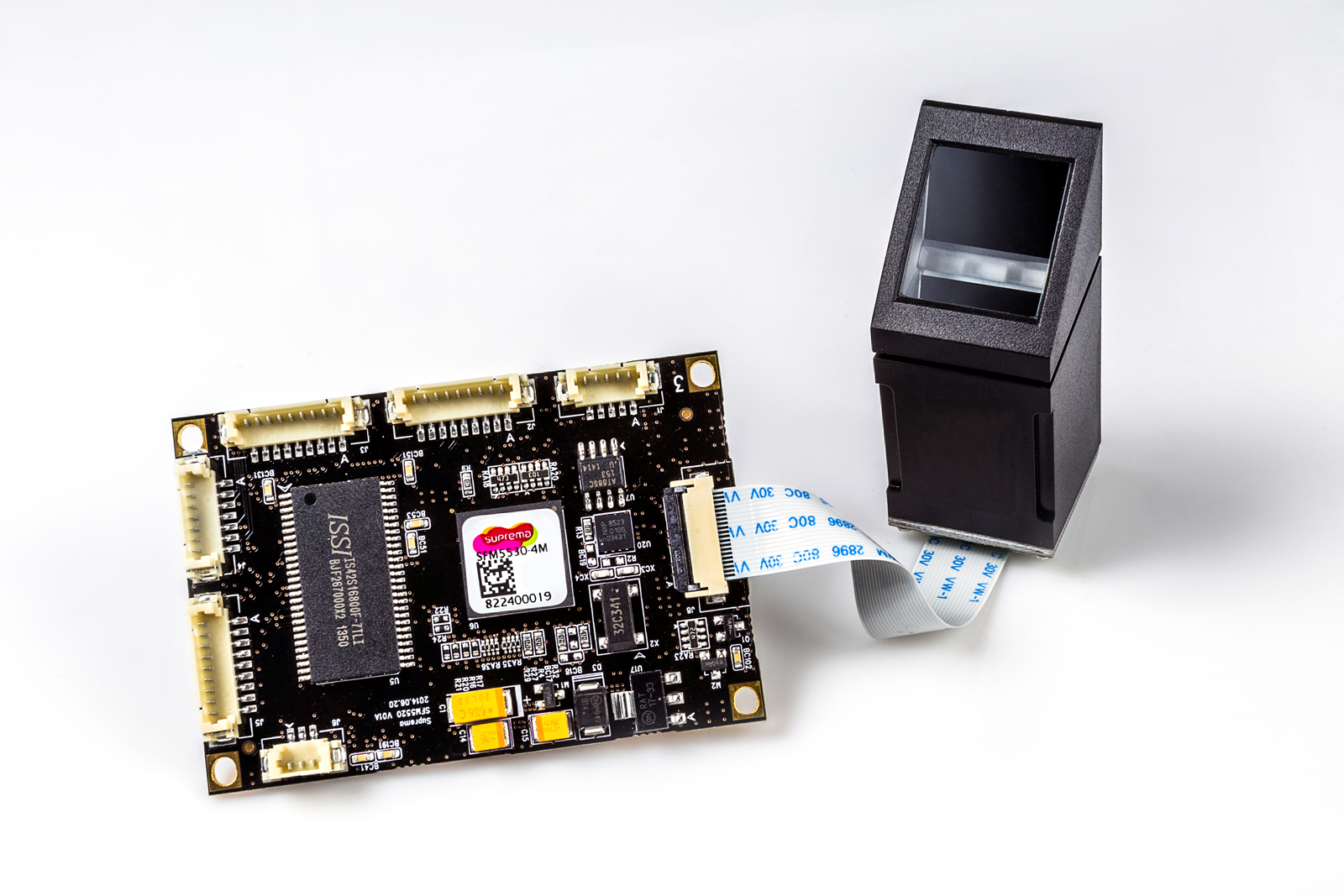

SFM 5520-OP

  • Optical fingerprint Sensor
  • 500 dpi resolution
  • IP65 rated waterproof front side
  • Solid sensor surface
  • High quality fingerprint image

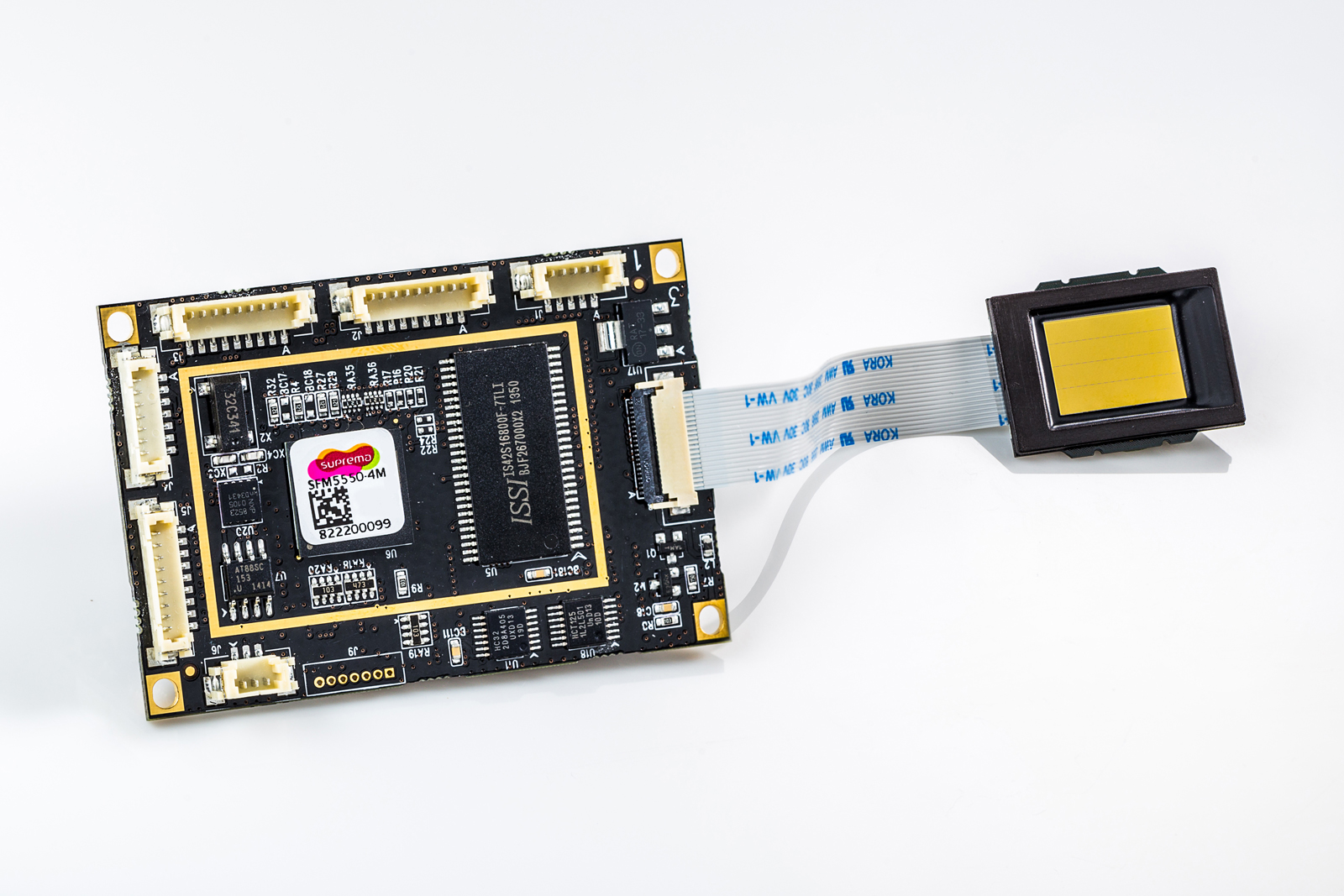

SFM 5530-OC

  • Rugged optical fingerprint sensor
  • IP65 rated waterproof front side
  • Solid and scratch-free sensor surface
  • High quality fingerprint image
  • For both dry and wet fingers

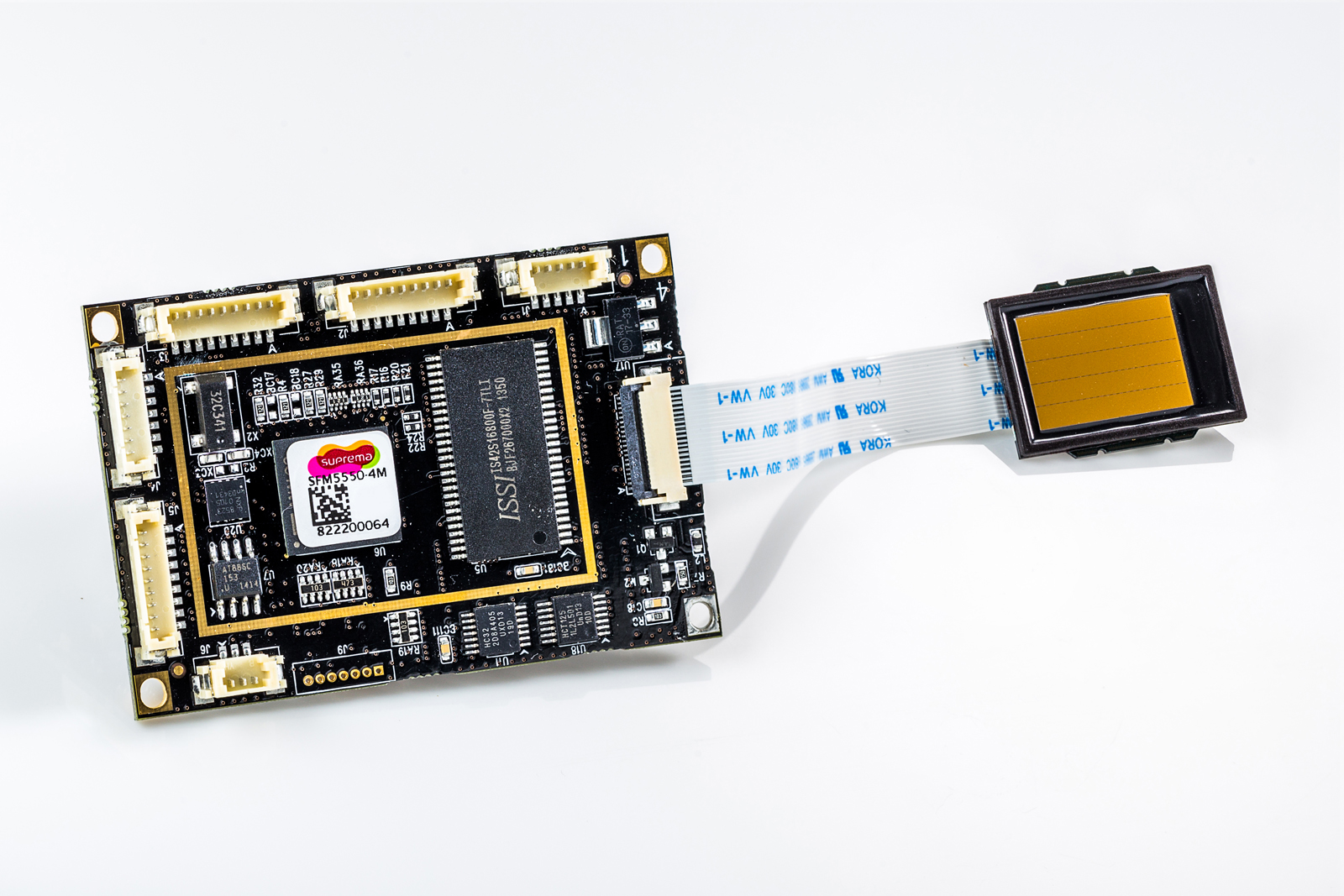

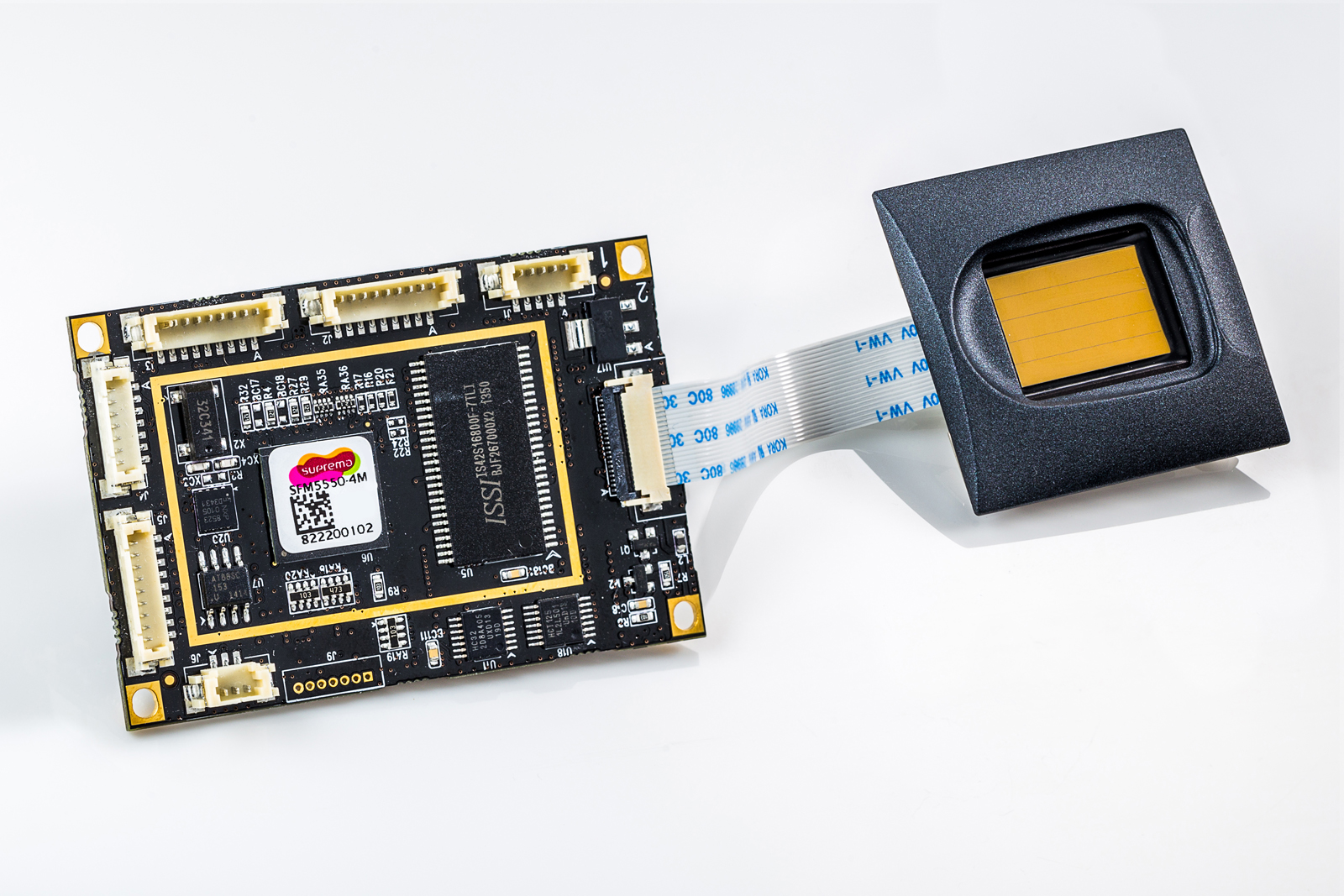

SFM 5550-TC

  • UPEK's touch chip
  • Capacitive type sensor
  • Perfect print technology

Specification

Model
SFM5500
SFM5520-OP5
Sensor Type Optical
Sensor Option OP5
Resolution(dpi) 500
Sensing Area (mm) 16.0 x 19.0
Image Size (pixel) 272 x 320
Finger Rotation (°) +/- 90°
Sensor Dimension (L x W x H) (mm) 20.5 x 25 x 52
IP Rating IP65
Key Feature High Image Quality
Waterproof
CPU 533MHz DSP
Flash Memory 4MB (8MB Option)
EER < 0.1%
Enrollment Time < 550 ms
1:1 Verification Time < 550 ms
1:1000 Identification Time* < 700 ms
Template Type Suprema,
ISO19794-2, ANSI-378
Template Size Default: 384 Bytes
256 - 384 Bytes (Configurable)
Template
Capacity
9,000 @ 4 MB Flash
19,000 @ 8MB Flash
Log Capacity 12,800
Host Communication RS-232C or RS-422/485 up to 115200 bps
Aux Communication Asynchronous serial:
RS-232C or CMOS level up to 115200 bps
Wiegand Interface 1x Wiegand Input, 1x Wiegand Output
External I/O 3x
Digital Input, 3x Digital Output, 3x LED Output
Encryption (Fingerprint Data) 256-bit AES
Operating Temperature Range (°C) -15 to 50 °C
Supply
Voltage
5 VDC Regulated
Board Size (L
x W x H) (mm)
63 x 43 x 10
