01

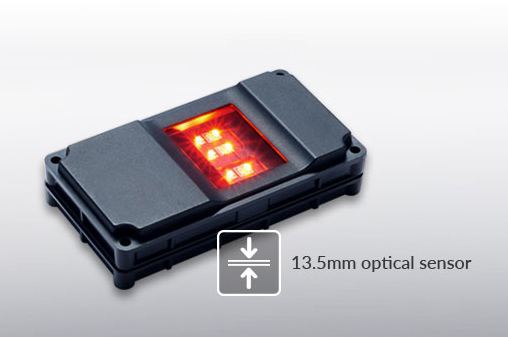

World’s slimmest
FAP 20 optical sensor


BioMini Slim 2 is the world's thinnest 13.5 mm FAP20 certified optical fingerprint scanner.

02

Multi Dynamic
Range (MDR) Technology


BioMini Slim 2 can acquire fingerprint regardless of external light or fingerprint conditions, applying Suprema’s proprietary MDR technology, an improvement on existing HDR technology. It can get normal fingerprints even under 100,000 LUX direct light, which is equivalent to direct sunlight.

03

FBI PIV and FBI Mobile ID FAP20 certificates

Image compression



standard: WSQ

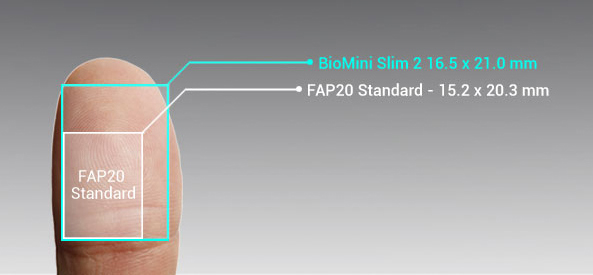

BioMini Slim 2 is the world’s thinnest FBI PIV and FBI Mobile ID certified FAP20 optical scanner. The Scanner features Large Platen that spans 16.5mm x 21.0mm wide, which is well above the FAP20 Standard that spans 15.2mm x 20.3mm

04

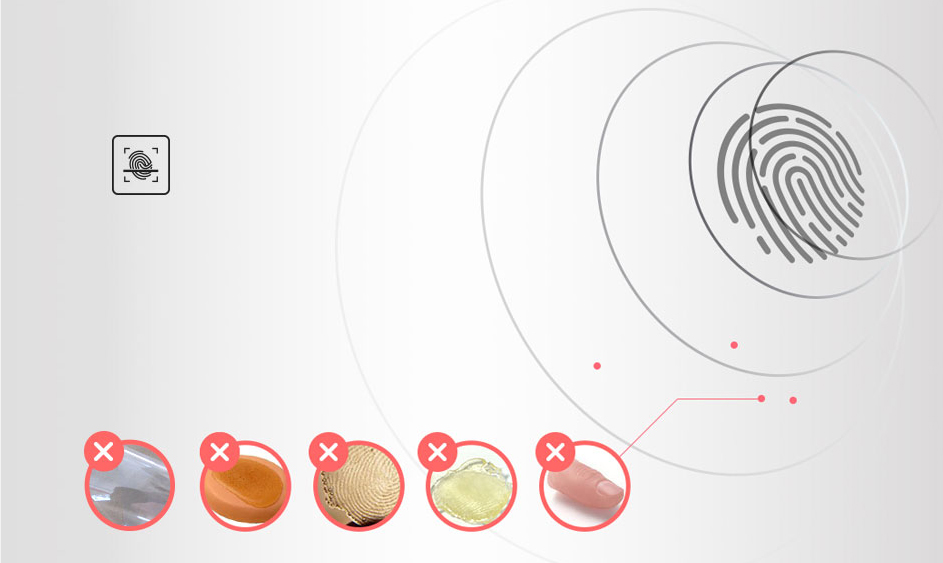

Advanced Live
Finger Detection

(LFD) Technology


BioMini Slim 2 provides advanced Live Finger Detection technology that distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

05

Easy
Integration


  • BioMini SDK for easy application development
  • Android, MS Windows & Linux compatible
  • Multi-threaded code design for multi-core CPU utilization
06

World’s best
performing

fingerprint algorithm


  • Top results in NIST MINEX tests and FVC
  • NIST certified interoperable image & template format standards (ANSI-378/ISO 19794-2, ISO 19794-4)
  • Fast matching speed : 100,000 match / second (with Intel Core2Duo)

Specification

Main Sensor Type Optical
Resolution 500dpi / 256 gray
Platen Size 16.5 x 21.0 mm
Sensing Area 15.24 x 20.32 mm
Image Size 300 x 400 pixels
Compression Standards WSQ
Template Format Suprema, ISO19794-2, ANSI-378
Image Format ISO19794-4
IP Rating IP65
Interface USB 2.0 High-speed
Hardware Operating Temperature -10°C ~ 50°C
Certification CE, FCC, KC, UL/CB, WHQL, IEC62471, WEEE
Dimensions(W x L x H) 72.8 x 40.7 x 18.5 mm (BioMini Slim 2)
59 x 32 x 13.5 mm (BM-Slim2)
Compatibility Operating System Android 4.1 (Jelly Bean) and Above
Windows
Linux
