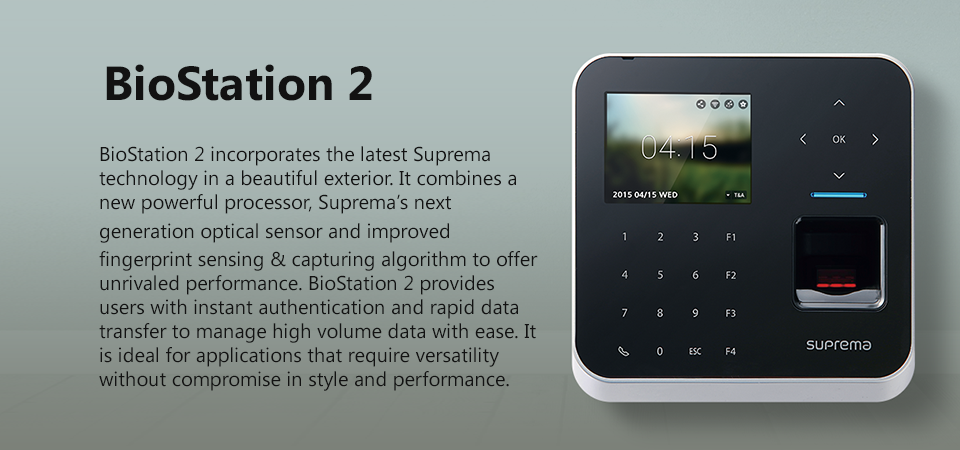

Biostation
01

Meet the new
standard in biometrics


BioStation is Suprema’s top selling fingerprint terminal. Features full navigation keys with number keypad, allows BioStation to be more than just an access control device, but serve as a full featured biometric solution for time management duties.

02

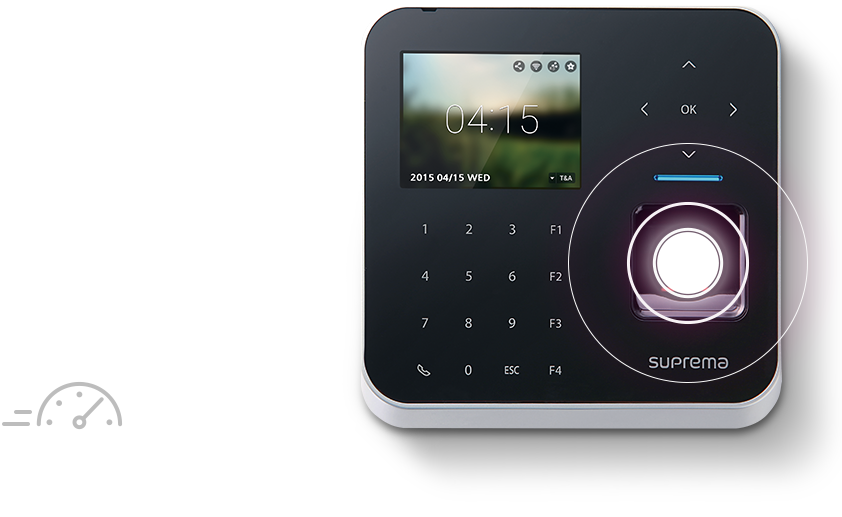

Instant Matching & Authentication


BioStation 2 is designed to provide matching & authentication in an instant. Leveraging the powerful hardware and sophisticated algorithms, the device can match and authenticate up to 20,000 fingerprints per second.

03

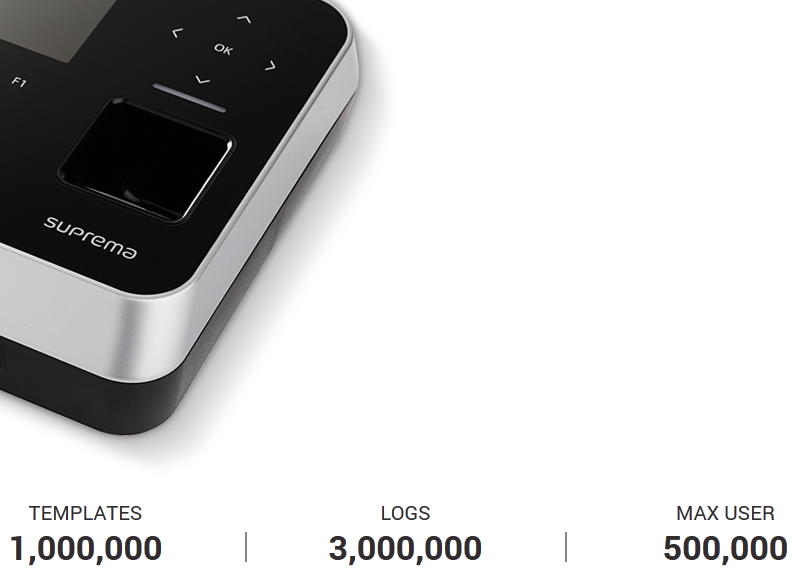

Massive Memory Capacity


BioStation 2 offers a massive memory capacity to handle large number of users. The device can manage up to 1,000,000 fingerprint templates, which translates to 500,000 maximum users that is equivalent to the population of a large metro area such as Miami. Additionally, BioStation 2 can hold up to 3,000,000 logs for backup in case of a connection loss to server in order to safely guard all records.

04

Rapid Data Transfer


BioStation 2 features Rapid Data Transfer that drastically improves the transfer spped of user and log data. The device can send user data that includes large biometric data at a rate of 5,000 users per min.

05

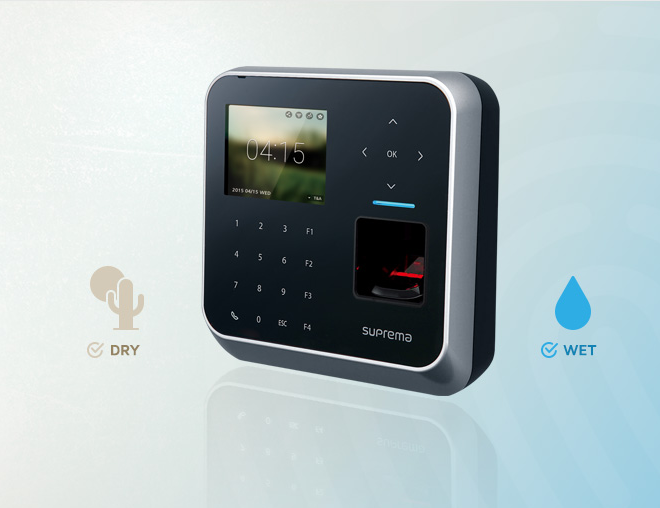

Next Generation Optical Sensor


The new sensor in BioStation 2 enables the device to capture and process much clearer fingeprint images under less-than-ideal conditions. The new sensor offers excellent wet and dry fingeprint capture performance that allows the device to be used even in harsh environments.

06

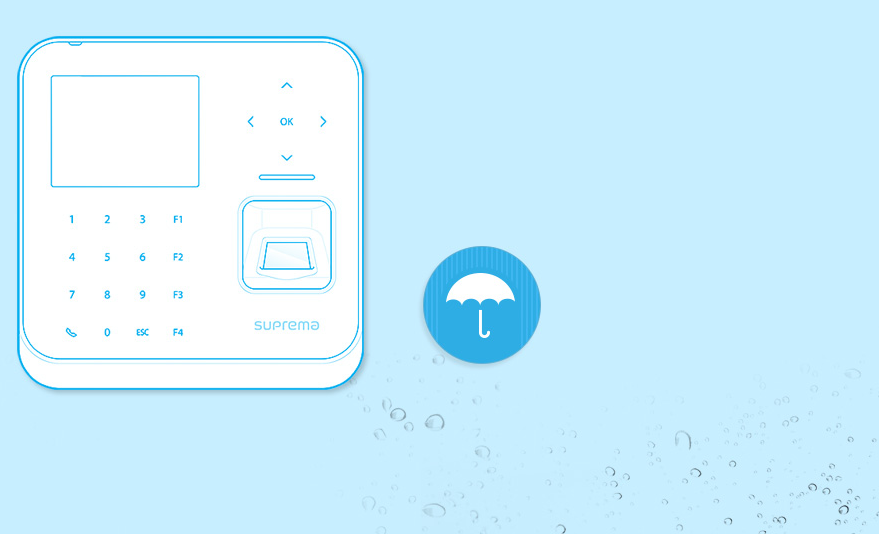

IP65 Weather Proof


BioStation 2 features Rapid Data Transfer that drastically improves the transfer spped of user and log data. The device can send user data that includes large biometric data at a rate of 5,000 users per min.

07

Versatile Interface

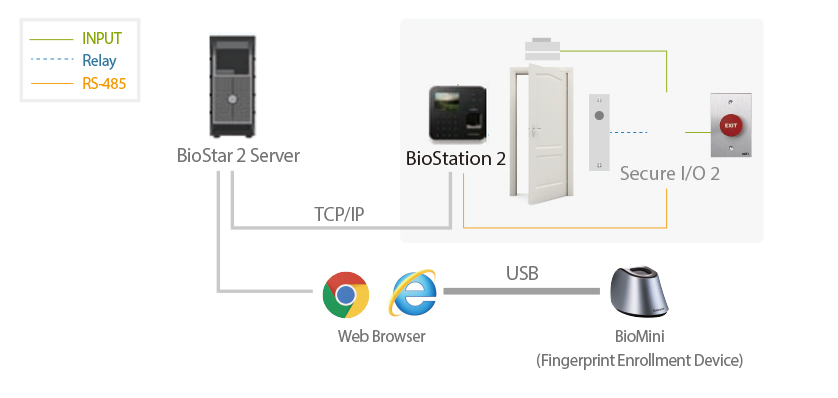

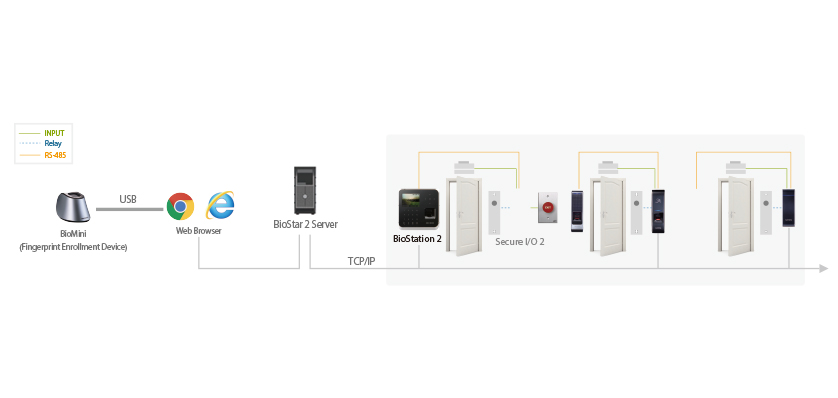

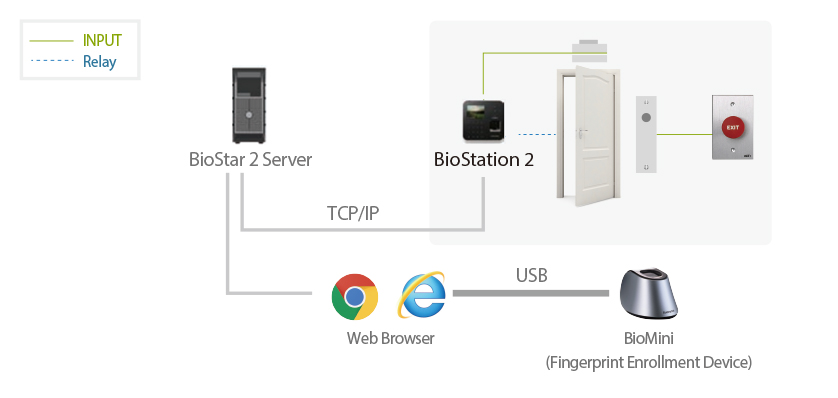

BioStation 2 features standard TCP/IP and RS485 interfaces for main communication between devices and the server. It also supports traditional RS232, USB, and Wiegand interfaces to provide maximum versatility. BioStation 2 features built-in WiFi and Power-over-Ethernet for flexible installation options.

Specification

Main Biometric Fingerprint
IP Rating IP65
RF Option 125KHz EM
125KHz HID Prox
13.56MHz MIFARE Classic® / DESFire®/ DESFire® EV1/Felica/NFC
13.56MHz iClass SE
Multi-Controller Yes
Capacity Max. User (1:1) 500,000
Max. User (1:N) 20,000
Max. Template (1:1) 1,000,000
Max. Template (1:N) 40,000
Max. Text Log 3,000,000
Max. Image Log -
Interface WiFi Yes
TCP/IP Yes
RS-485 1ch Host or 1ch Slave
(Selectable)
RS-232 Yes
Wiegand 1ch In
1ch Out
Input 2 Inputs
Relay 1 Relay
USB Host
SD Card Slot -
Hardware CPU 1.0GHz RISC
Memory 128MB RAM + 8GB Flash
LCD 2.8" Color
LED Indicator Multi-Color
Sound 16bit Hi-Fi
Operating Temp. -20° to 50°C
Tamper Yes
Power 12VDC
PoE Yes
Dimensions 142 x 144 x 45 (WxHxD mm)
Certificates CE, FCC, KC, RoHS, REACH, WEE
Compatibility BioStar 1.x -
BioStar 2 Yes
