Suprema X-Station 2 is a versatile intelligent terminal that supports different credentials, such as QR codes, Mobile Access, RFID cards and fingerprints, offering the ultimate flexibility in terms of credential options and system design. Equipped with secure boot process, Open Supervised Device Protocol (OSDP) and cameras for image logs, X-Station 2 improves security while safeguarding user data. X-Station 2 is easy to install, use and maintain with features like Power over Ethernet (PoE), intuitive GUI on 4 ” wide touchscreen, and IP65 rating.
01
x-Station 2
Versatile Intelligent Terminal
BioStation is Suprema’s top selling fingerprint terminal. Features full navigation keys with number keypad, allows BioStation to be more than just an access control device, but serve as a full featured biometric solution for time management duties.
02
Multi-technology Terminal
with Various Credential Options

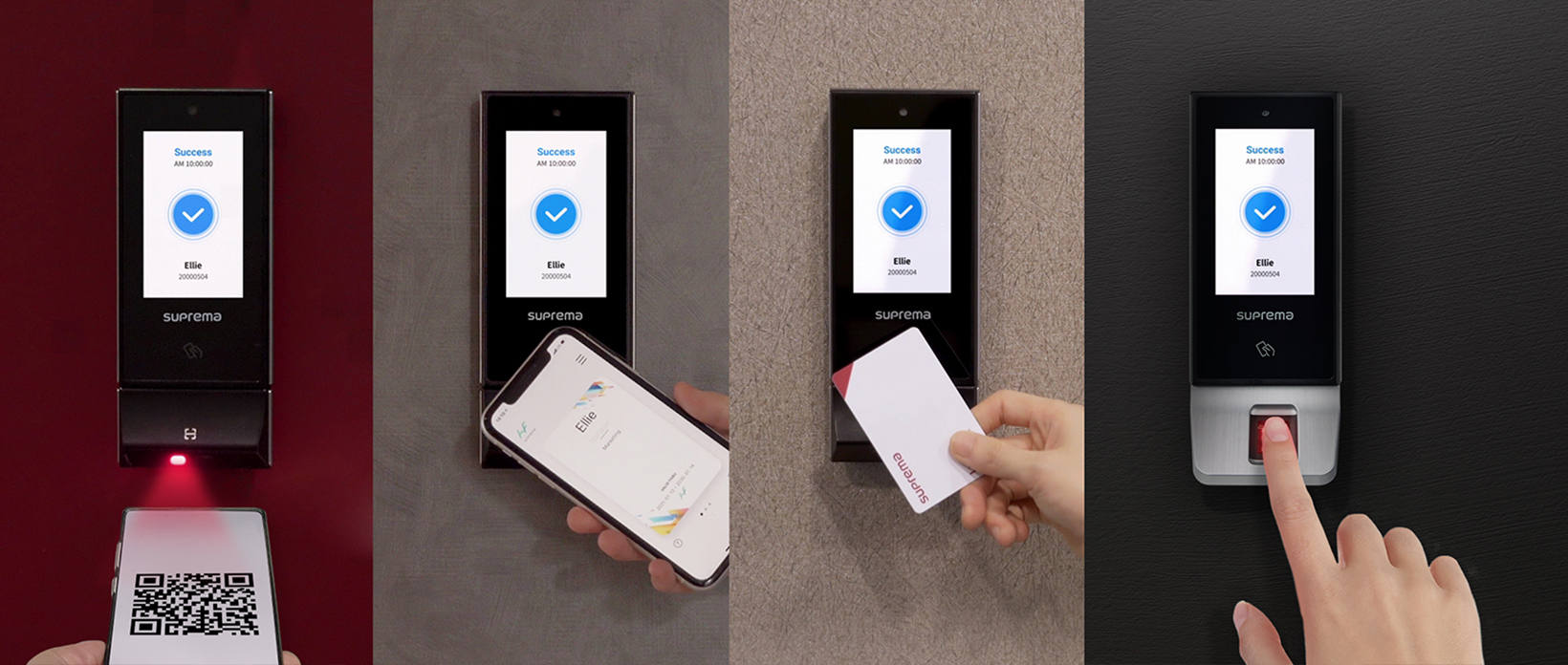

X-Station 2 provides multiple credential options of QR codes, Mobile Access, RFID cards and fingerprints, offering maximum system design flexibility. Mobile Access and QR code authentication let users go cardless and carefree by using smartphones as credentials.
NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption

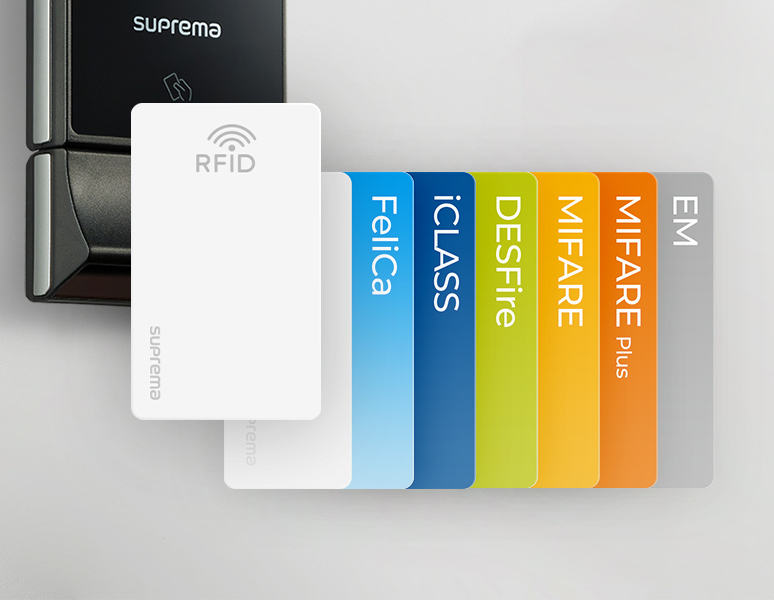

X-Station 2 is compatible with most existing RFID card technology. It supports both LF (125kHz) and HF (13.56MHz) RFID as well as various card types including EM, MIFARE, MIFARE Plus, iCLASS, DESFire and FeliCa.
X-Station 2 guards against malware attacks and data breaches with secure boot process. By supporting OSDP (Open Supervised Device Protocol), the terminal encrypts bi-directional RS-485 communication. Using the built-in camera, X-Station 2 can also capture image logs for added security.

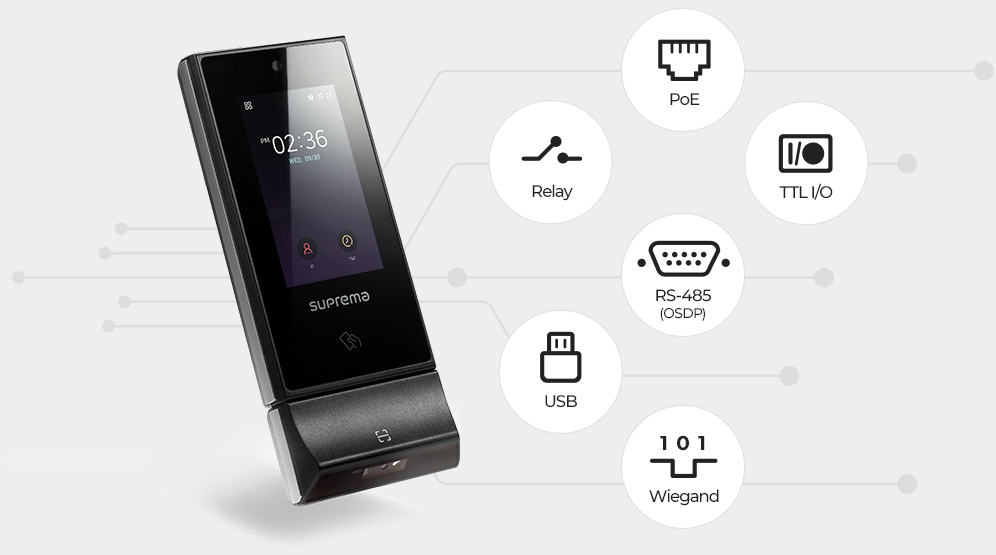

X-Station 2 enables convenient installation with less wiring by supporting Power over Ethernet (PoE) as well as various interfaces like Wiegand, RS-485, TTL input and Relay. IP65 rated, X-Station 2 is dust-tight, water resistant and easy to maintain.
X-Station 2 boasts the "Best-in-class" performance (5,000 template match/ sec) and the highest level of security in terms of Powerful CPU, MINEX-Certified Algorithm, Fake/Live Finger Detection, Fingerprint Template and Packet Data Encryption.
* The fingerprint module is only available in models of XS2-ODPB and XS2-OAPB.

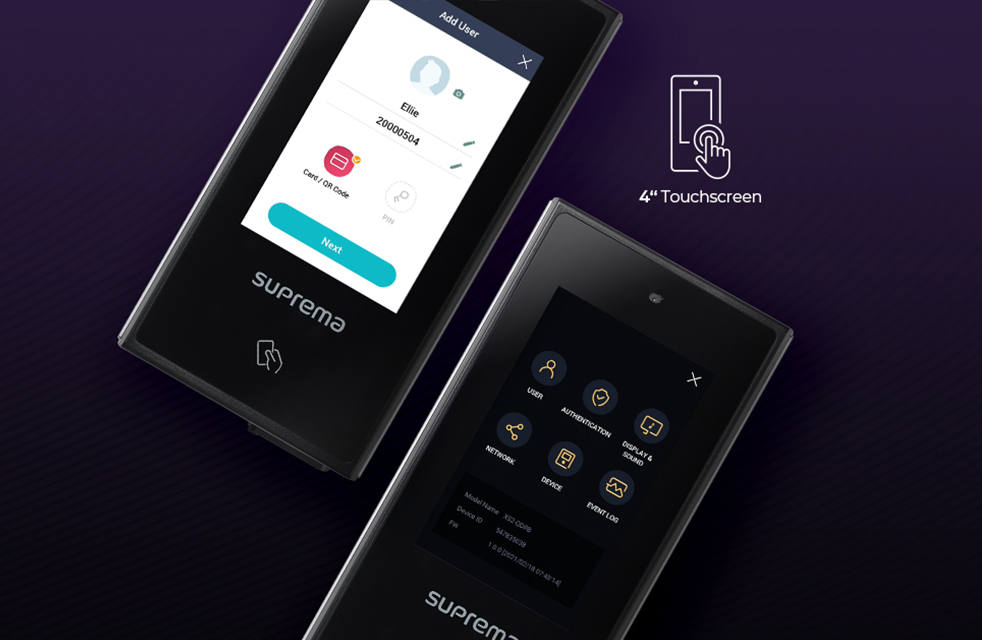

X-Station 2 allows quick and easy access to features on its 4 ” wide capacitive touchscreen. You can also customize the display for branding purposes.
X-Station 2’s large memory can sufficiently meet enterprise needs. Its 16 GB Flash and 1 GB RAM can handle up to 500,000 users, 5 million text logs and 50,000 image logs.
USERS
500,000
IMAGE LOGS
50,000
TEXT LOGS
5,000,000

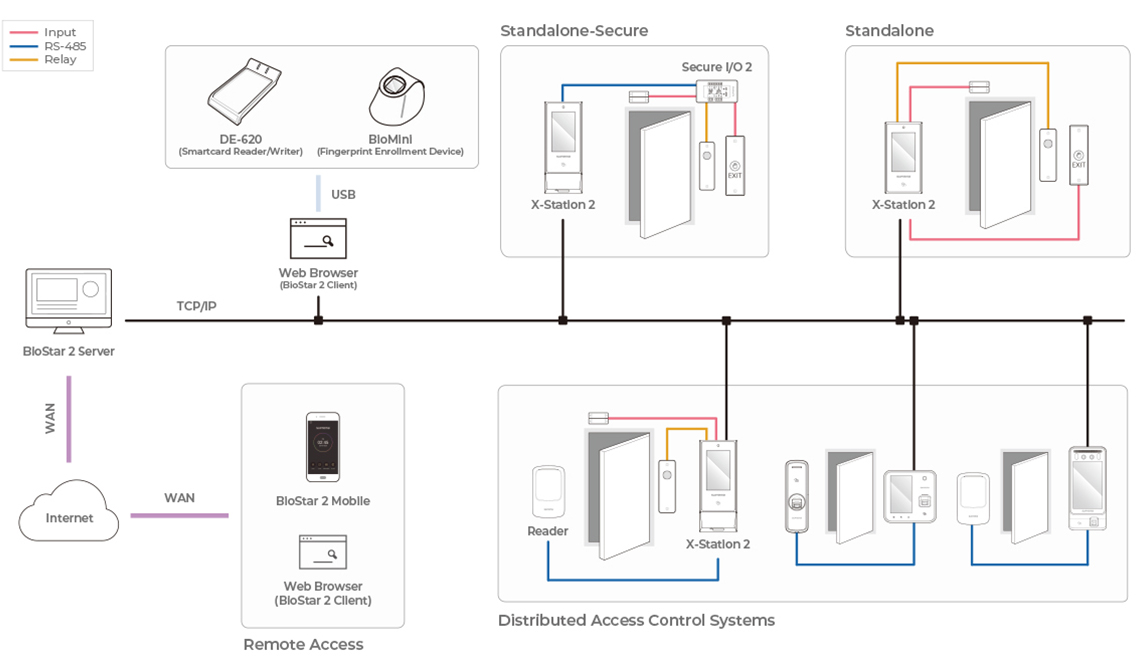

Configuration

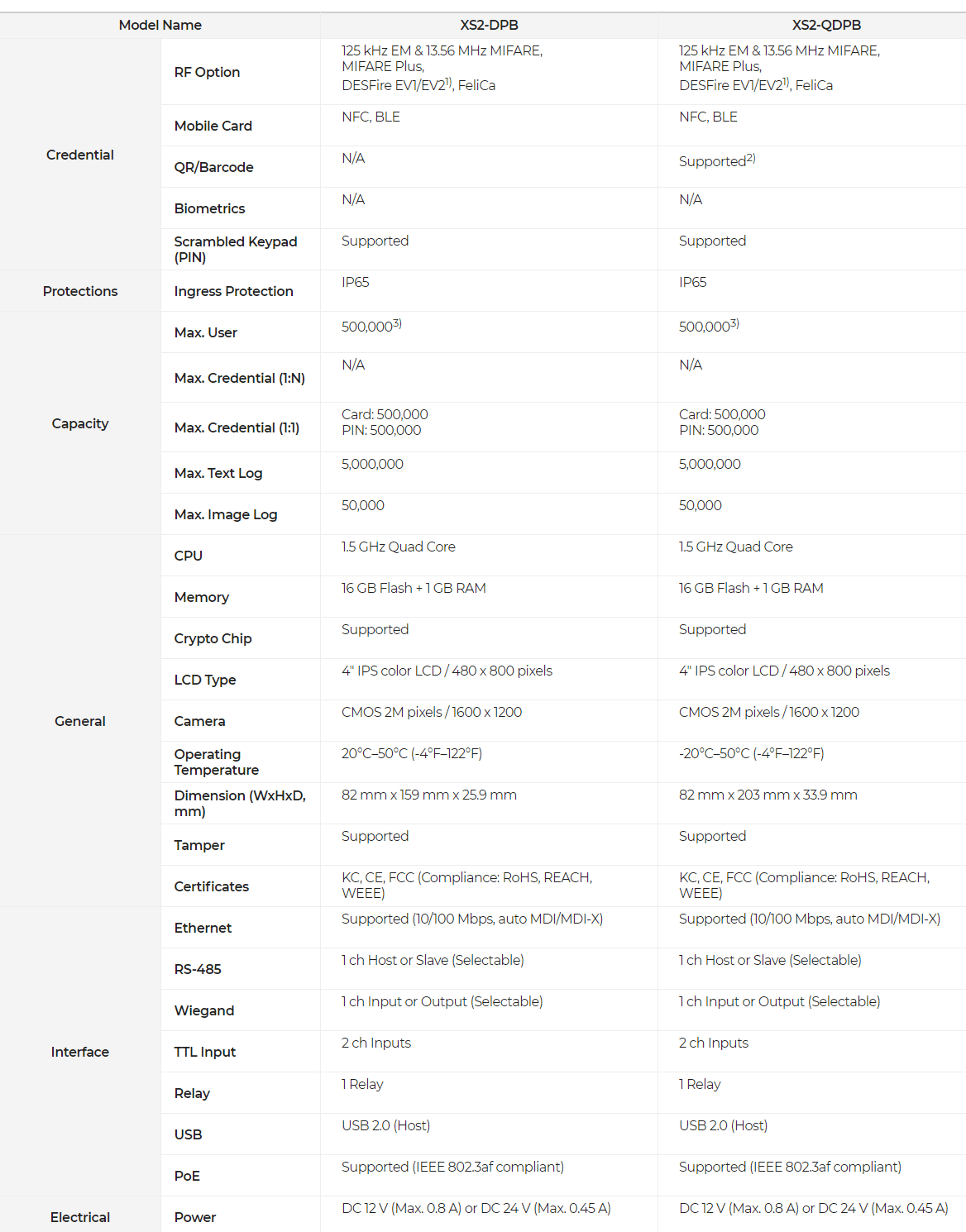

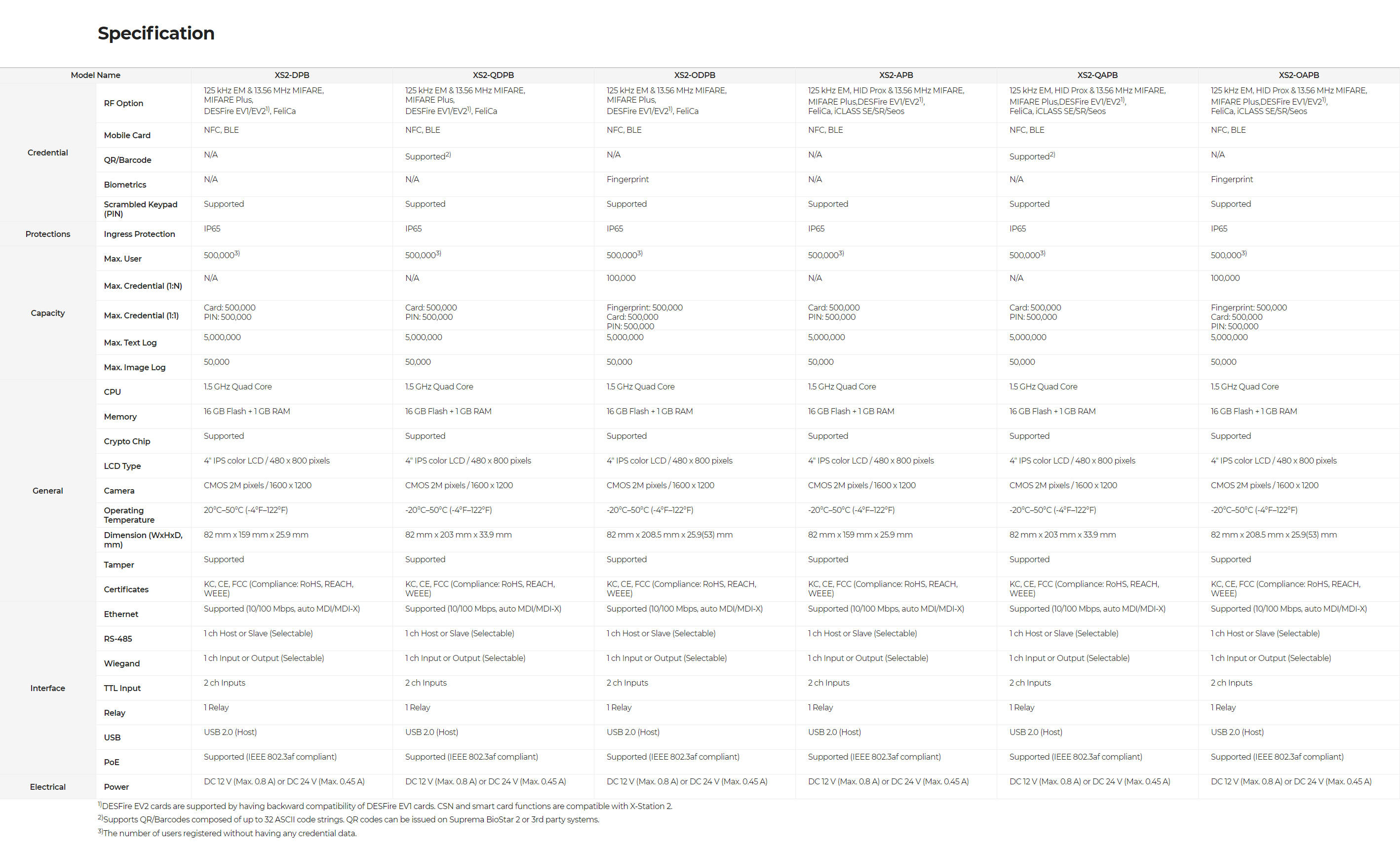

Specification
1) DESFire EV2 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with X-Station 2.
2) Supports QR/Barcodes composed of up to 32 ASCII code strings. QR codes can be issued on Suprema BioStar 2 or 3rd party systems.
3) The number of users registered without having any credential data.
