01

Multi Dynamic
Range (MDR)

Technology


Suprema’s patented MDR technology guarantees exceptional fingerprint image quality even under extreme direct light condition up to 100,000 LUX. While providing faster image capture speed of up to 6 ms, MDR technology allows superior sensing capability regardless dryness as well as light conditions.

02

Live Fingerprint Detection(LFD)

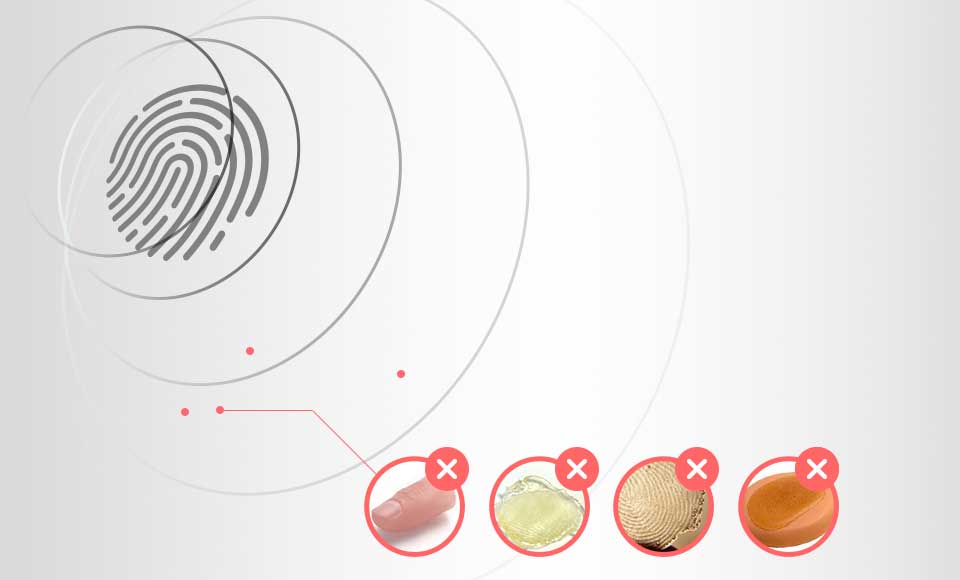

BioMini Plus 2 features advanced Live Fingerprint Detection technology. The technology effectively analyzes the dynamically changing pattern, liveness feature and unnaturalness feature of live and new fingers. The technology distinguishes fake fingerprints made from various materials including clay, rubber, silicon, glue, paper, film and more.

03

Certifications
& Compliance


FBI PIV/FIPS 201 Certification

FBI PIV/FIPS 201 certification ensures that BioMini Plus 2 scanners are in compliance with FBI’s next generation identification system image quality specification.

FBI Mobile ID FAP 10 Certification

FBI Mobile ID certification guarantees reliable operation of BioMini Plus 2 scanners under mobile environment based upon specified capture dimensions(FAP 10)

STQC Certification by UIDAI

STQC certification is to ensure BioMini Plus 2 scanner fully complies with standards, specifications and quality measures released by UIDAI for UID(AADHAAR) based e-KYC(Know Your Customer) applications.

04

Rugged IP65-rated Dust & Waterproof

Sensor Surface


BioMini Plus 2 adopts new improved optical sensor which also provides exceptional durability. The rugged sensor housing effectively protects sensitive optical structure from dust, moisture and liquid.

Specification

Main Sensor Type Optical
Resolution 500dpi / 256 gray
Sensing Area 16.0 x 18.0 mm
Image Size 315 x 354 pixels
Compression Standards WSQ
Template Format Suprema, ISO19794-2, ANSI-378
Image Format RAW, BMP, WSQ, ISO 19794-4
Image Certificate FBI PIV/FIPS 201, FBI Mobile ID FAP10, STQC
Live Fingerprint Detection Supported
IP65 Supported(Sensor Surface), Scratch Free
Interface USB 2.0 High-speed
Hardware Operating Temperature -10°C ~ 50°C
Certification CE, FCC, KC, RoHS, USB-IF, CB, IEC62471, WEEE, WHQL
Dimensions 66 x 90 x 58 mm (W x L x H)
Compatibility Operating System Windows
Linux
Android
