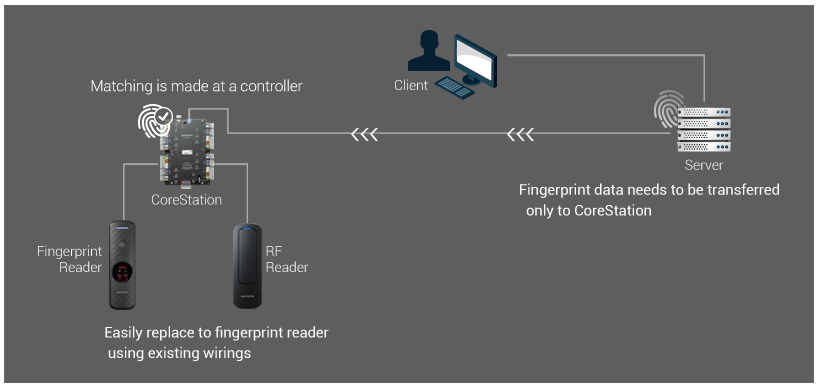

Centralized storage for user and access control data including fingerprint credentials
02
Complete controller
functionalities with fingerprint matching
NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption
03

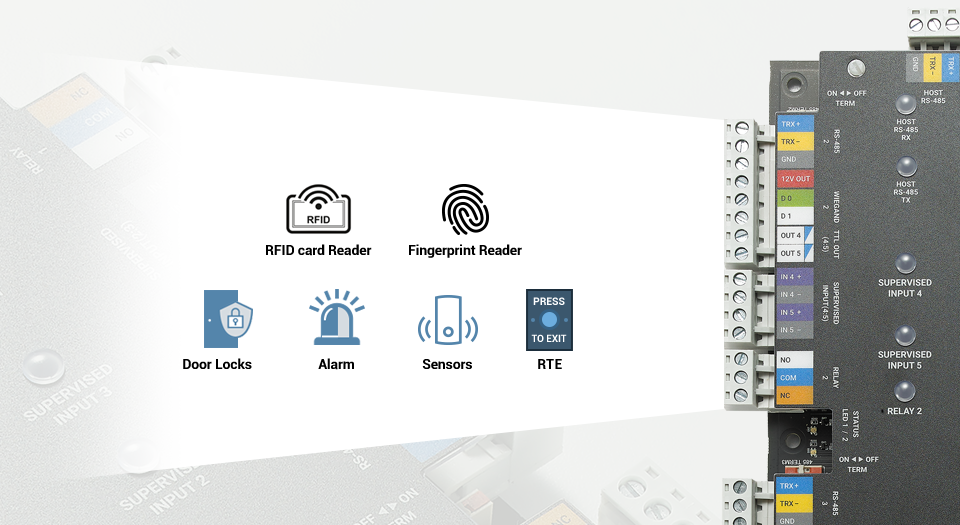

Multi-port
interface for fingerprint /RF readers
(Supports locks, sensors, RTE, and alarm devices)
Mullion-type Design
With its 50mm width, BioEtnry P2 perfectly fits in in narrow spaces and door frames
-
Security Access Control -
Biometric Fingerprint Solutions -
HRM Software (Cloud/ SaaS) -
Biometric, RFID, & NFC Identity Management
- Centralized, secure storage of biometric and access group data
- No Ethernet connection to the edge devices
- No data stored on the edge devices
- Secure communication via TLS 1.2
- AES-256 encryption
- OSDP 2.0 compatible
- Elevator control with OM-120
- Supports up to 132 access points with DM-20 and Secure I/O 2 - 132 x Wiegand readers/64 x RS-485 readers
- 3rd party Wiegand reader

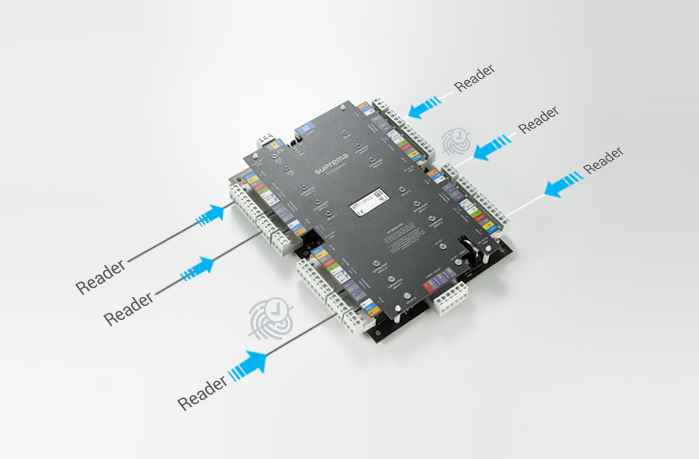

- 4ch onboard reader control - Wiegand, RS-485, relays, inputs, outputs, power out, AUX
- Leverages existing wiring
07
Simultaneous matching speed up to 8 devices in 1 second
- Centralized, secure storage of biometric and access group data
- No Ethernet connection to the edge devices
- No data stored on the edge devices
- Secure communication via TLS 1.2
- AES-256 encryption

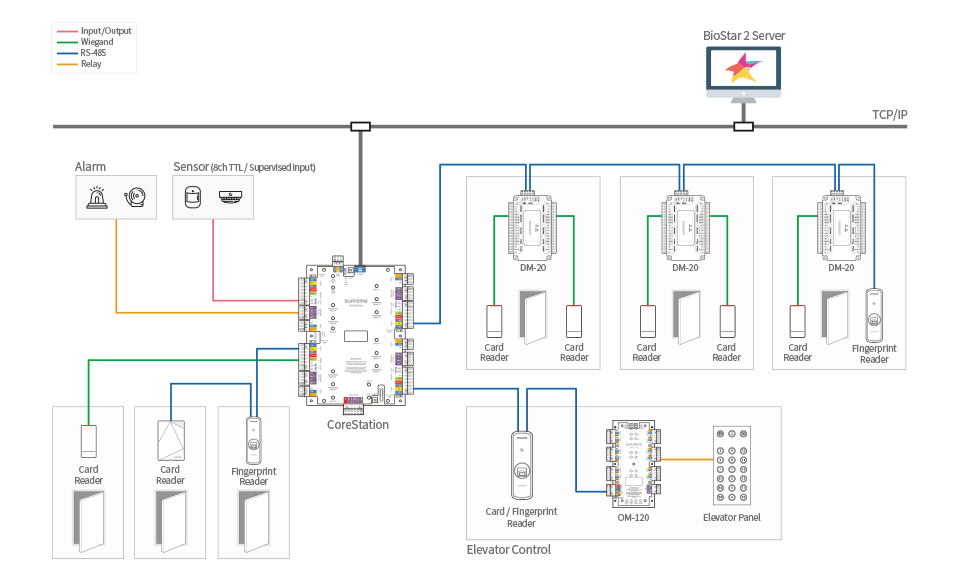

Configuration
Specification
| Hardware | CPU | 1.4 GHz Octa Core |
| Memory | 8GB Flash + 1GB RAM | |
| LED | Multi-color - Status x 2 - HOST RS-485 TX x 1 - HOST RS-485 RX x 1 - Supervised input x 8 - Relay x 4 - AUX IN x 2 |
|
| Operating Temperature | 0°C ~ 50°C | |
| Storage Temperature | -40°C ~ 70°C | |
| Operating Humidity | 0% ~ 80%, non-condensing | |
| Storage Humidity | 0% ~ 95%, non-condensing | |
| Dimension (W x H x D) | 150 mm x 214 mm x 21 mm | |
| Weight | 415 g | |
| Certificates | CE, KC, RoHS, REACH, WEEE | |
| Capacity | Max. User (1:1) | 500,000 |
| Max. User (1:N) | 100,000 | |
| Max. Template (1:1) |
1,000,000 * Two templates per finger |
|
| Max. Template (1:N) |
200,000 * Two templates per finger |
|
| Max. Card | 500,000 | |
| Max. PIN | 500,000 | |
| Max. Text Log | 5,000,000 | |
| Interface | Ethernet | Supported Supported (10/100 Mbps, auto MDI/MDI-X) |
| RS-485 | 5ch | |
| RS-485 Communication Protocol | OSDP V2 Complaint | |
| Wiegand | 4ch | |
| Relay | 4 relays | |
| Supervised Input | 8ch (TTL input selectable) | |
| TTL Output | 8ch | |
| AUX Input | 2ch (AC POWER FAIL, TAMPER) | |
| Connectivity | Max. Slave Devices (RS-485) | Max. 64 devices (Max. 31 devices per port) |
| Max. Wiegand Devices | Max. 132 devices (with DM-20) |
