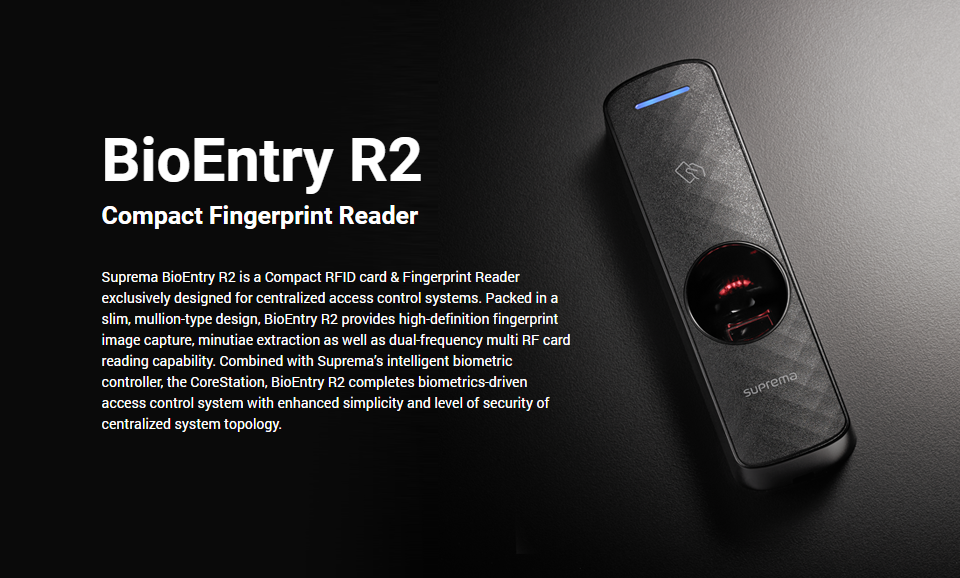

Combined with Suprema’s intelligent biometric controller, the CoreStation, BioEntry R2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.
02

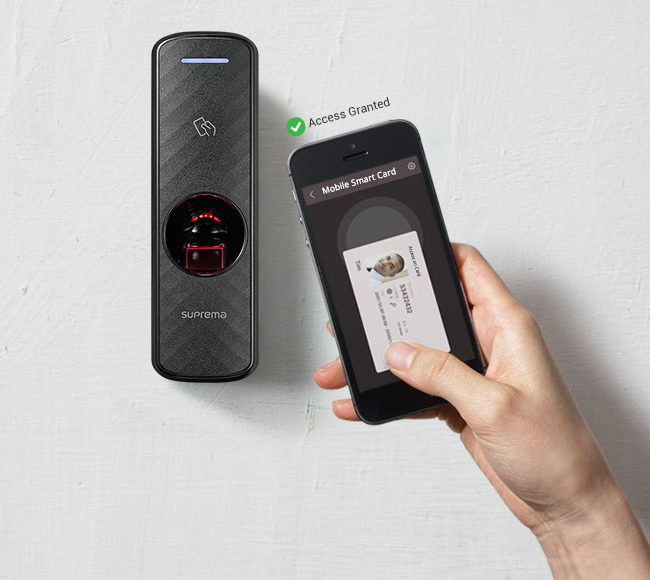

Communicates
with SmartPhones
With BioStar 2 Mobile card, as a credential, your smartphone is a key to access.
NFC Near Field Communication
Communicates through NFC's HCE in Android
Protecting data communications by algorithmization of AES 128 bit encryption
03
Mullion-type
Design
With its 50mm width, BioEtnry R2 perfectly fits in its narrow spaces and door frames.
Mullion-type Design
With its 50mm width, BioEtnry P2 perfectly fits in in narrow spaces and door frames
Featuring dual-frequency RFID card technology, BioEntry R2 supports both LF(125KHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, BioEntry R2 supports most types of RFID card standards with a single device including MIFARE Classic® , DESFire®, FeliCa, EM and NFC.

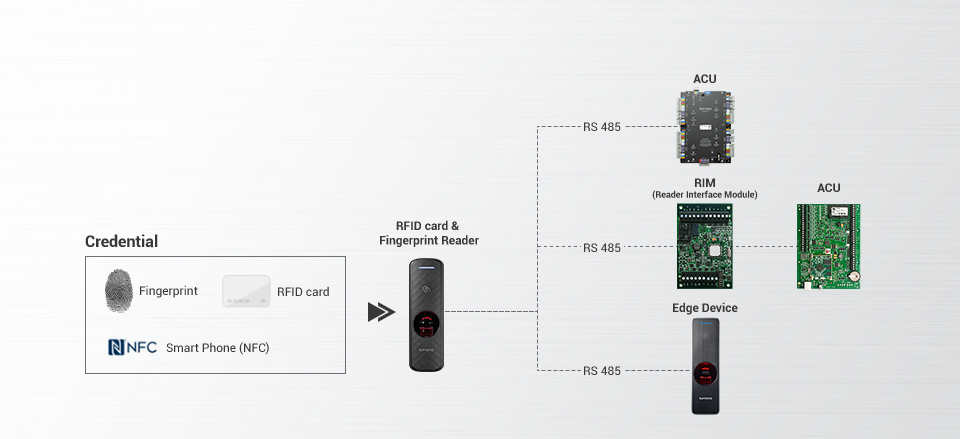

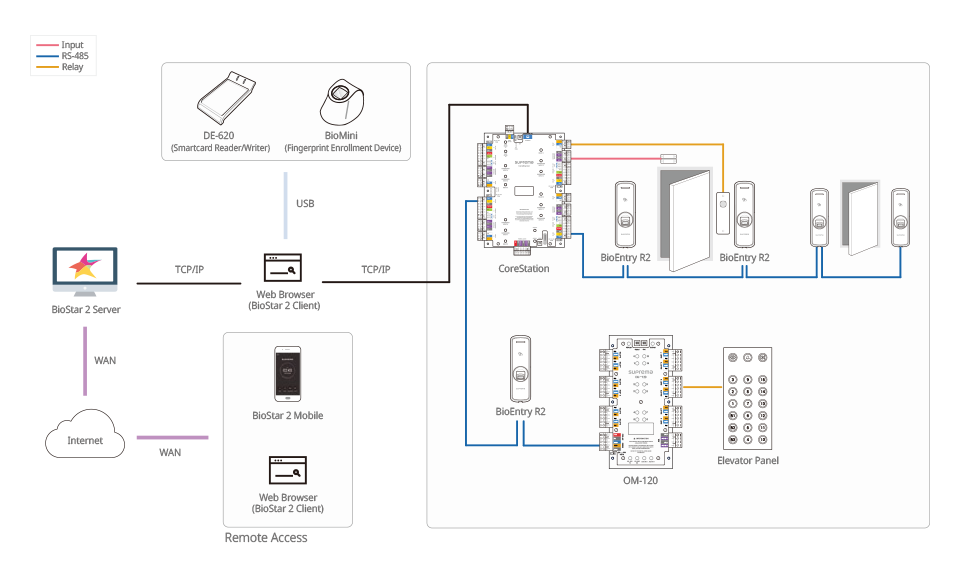

Configuration
Specification
| Credential | Biometric | Fingerprint |
| RF Option | BER2-OD: 125kHz EM & 13.56MHz MIFARE Classic® , MIFARE Plus® , DESFire®/EV1, FeliCa, NFC | |
| RF read range* | MIFARE Classic® /DESFire®/EM/iCLASS: 50
mm, Felica: 30 mm
* RF read range will vary depending on the installation environment. |
|
| Hardware | LED | Multi-color |
| Sound | Multi-tone Buzzer | |
| Operating temperature | -20°C ~ 50°C | |
| Operating humidity | 0% ~ 80%, non-condensing | |
| Dimension (W x H x D) | 50 mm x 164 mm x 37.5 mm | |
| Weight | Device: 158 g | |
| Bracket: 39 g (Including washer and bolt) | ||
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE | |
| Interface | RS-485 | 1ch Slave |
| Tamper | Supported |
