BioStation T2 is powered by World renowned Suprema fingerprint algorithm that has been recognized multiple times by both FVC and NIST MINEX as the most compatible and accurate algorithm in the world. With exceptionally low error rate and quick verification speed of Suprema algorithm, and powerful dual-CPU of the device pushes the performance envelop to the next level. FVC: International competition focused on fingerprint verification software assessment MINEX TEST: Minutiae Interoperability Exchange Test by US Government’s NIST † Placed First in FVC 2004, 2006 / NIST MINEX 2008
Picture is said to be worth a thousand words. Rather than a simple text based event logs, BioStation T2 can utilize its built-in camera to capture and store real-image based event logs. The image capture also features Face Detection Technology for added security during verification process. Proximity sensors and IR LED ensures that image captured are up to high standard.
BioStation T2 provides extra interface flexibility and multiple installation options for number of different environments. It supports traditional interfaces such as RS485, RS232, Wiegand, and USB as well as IP interfaces from TCP/IP to Wi-Fi options. The I/O ports can be extended using the Secure I/O accessory.

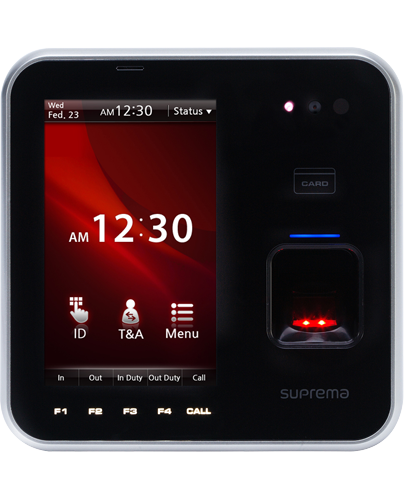

In order to utilize endless features on BioStation T2, the device features 5.0 inch clear LCD screen as the center of the device. Large screen and beautifully designed intuitive UI allows for easy navigation through device’s features, which results in premium user experience.

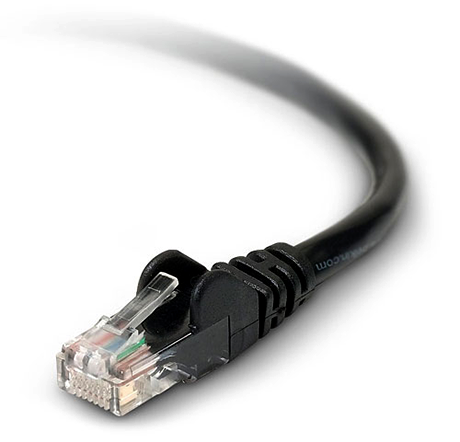

BioStation T2 embeds PoE (Power over Ethernet) module that supplies power to the device in the same transmission cable for data. This allows the device to be powered and controlled through just a single Ethernet cable, allowing quick and easy installation.
Category | Feature | BioStation T2 | Hardware | CPU | 667MHz RISC + 533MHz DSP |
---|---|---|---|---|---|
Main |
Biometric |
Fingerprint |
Memory |
256MB RAM + 1GB Flash |
|
IP Rating |
- |
LCD |
5.0" Color Touch |
||
RF Option |
125KHz EM 13.56MHz MIFARE Classic® / DESFire® |
LED Indicator |
Blue | ||
Multi-Controller |
- |
Sound |
16-bit Hi-Fi |
||
Capacity |
Max User (1:1) |
200,000 | Operating Temp. |
-20° to 50°C |
|
Max User (1:N) |
10,000 | Tamper |
Yes |
||
Max Template (1:1) |
400,000 | Power |
12VDC |
||
Max Template (1:N) |
20,000 | PoE |
Yes |
||
Max Text Log |

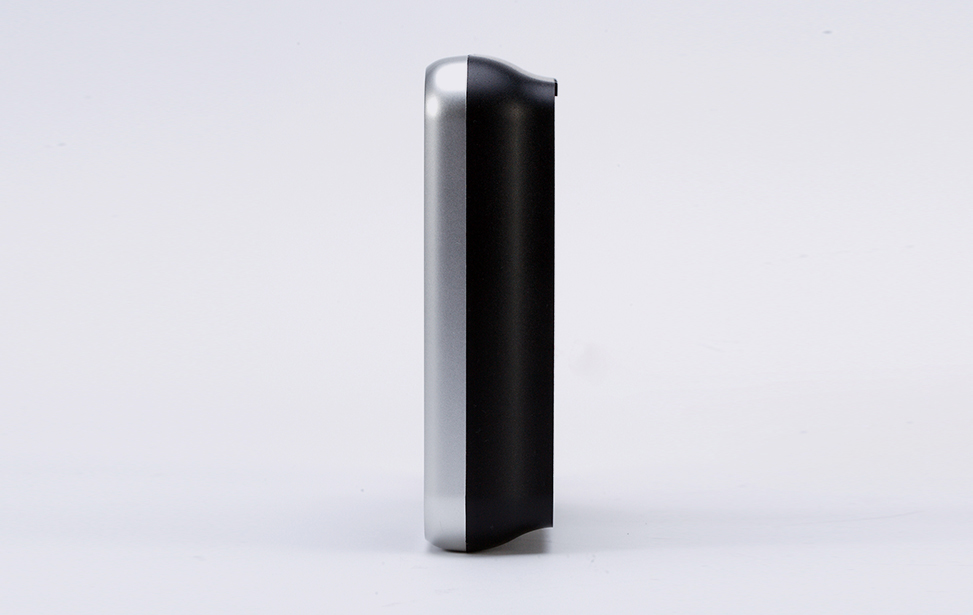

1,000,000 | Dimensions (W x H x D mm) |
155 x 155 x 40 | ||
Max Image Log |
5,000 | ||||
Interface |
WiFi |
Optional |
|||
TCP/IP |
Yes |
||||
RS-485 |
2 channels |
||||
RS-232 |
Yes |
||||
Wiegand |
1ch In or Out (Selectable) |
||||
TTL Input |
4 Inputs |
||||
Relay |
2 Relays |
||||
USB |
Host and Slave |
Certificates | CE, FCC, MSIP(KCC),RoHS | ||
SD Card Slot |
Yes | Compatibility | BioStar | Yes |
